Water Drain Panel

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,376 / 6,619HTML edition
← Chapter contentsProcedure contents

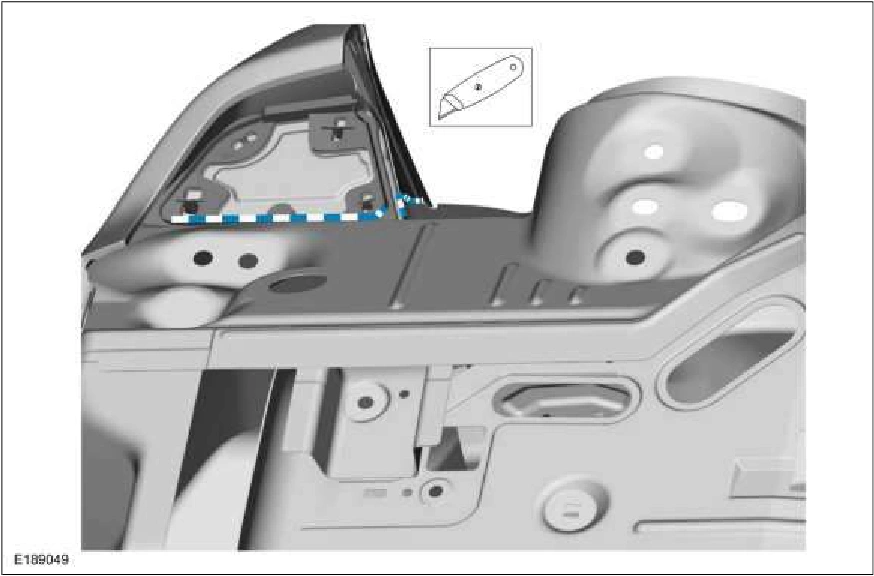

Water Drain Panel — original illustration 1, reference 2376Original colors & callouts · Select to enlarge

7. NOTE: Heat may be applied, not to exceed 170°C to aid in softening the adhesive and NVH foam.

Drill out the welds in the reinforcement and remove the water drain panel assembly.

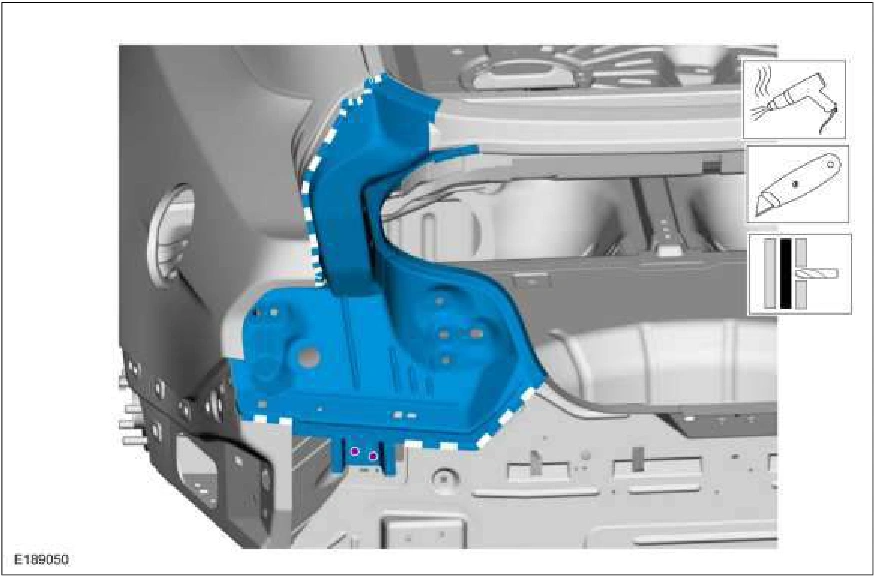

Water Drain Panel — original illustration 2, reference 2376Original colors & callouts · Select to enlarge

Installation

1. Refer to: Joining Techniques (501-25 Body Repairs - General Information, General Procedures).

2. Drill holes in the replacement panel for plug welding. Use the General Equipment: 8 mm Drill Bit
