Transmission Support Crossmember — 2016 workshop reference 2398

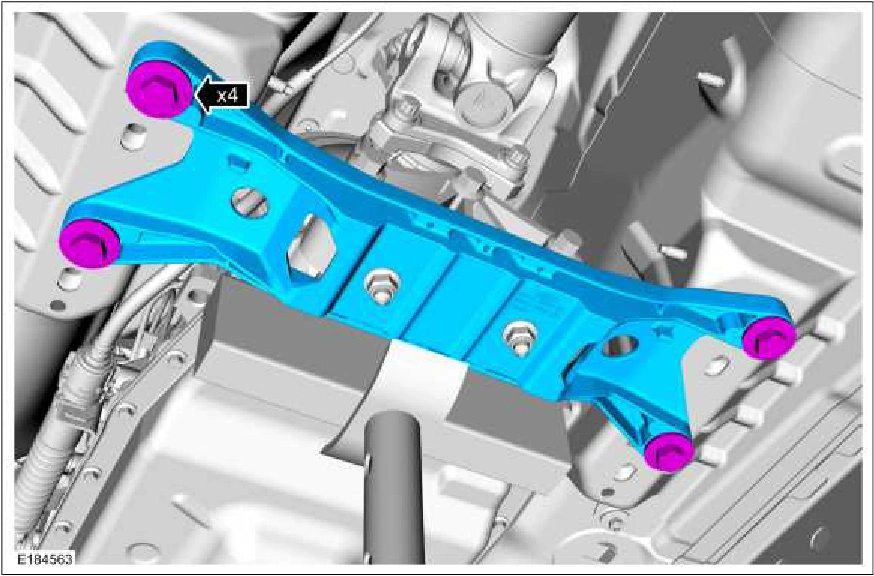

Transmission Support Crossmember — original illustration 1, reference 2398Original colors & callouts · Select to enlarge

3. NOTE: The transmission crossmember must be neutralized.

Slide the transmission support crossmember forward, rearward and side-to-side until the gaps between the transmission support insulator studs and the transmission support crossmember are equal.

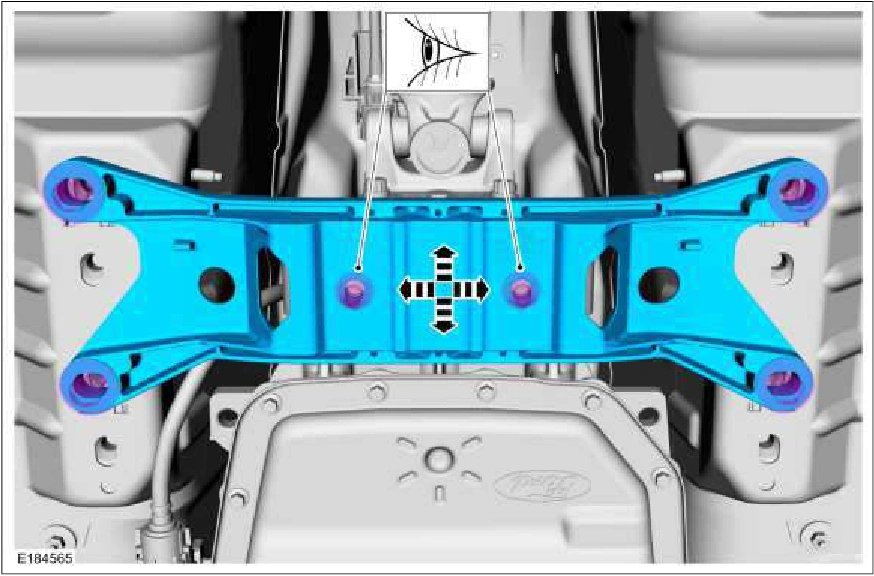

Transmission Support Crossmember — original illustration 2, reference 2398Original colors & callouts · Select to enlarge

4. With the transmission support crossmember neutralized, tighten the 2 transmission support insulator- to-transmission support crossmember nuts. Torque : 59 lb.ft (80 Nm)

Source reference 2398
