Transmission Support Crossmember — 2016 workshop reference 2399

Transmission Support Crossmember — original illustration 1, reference 2399Original colors & callouts · Select to enlarge

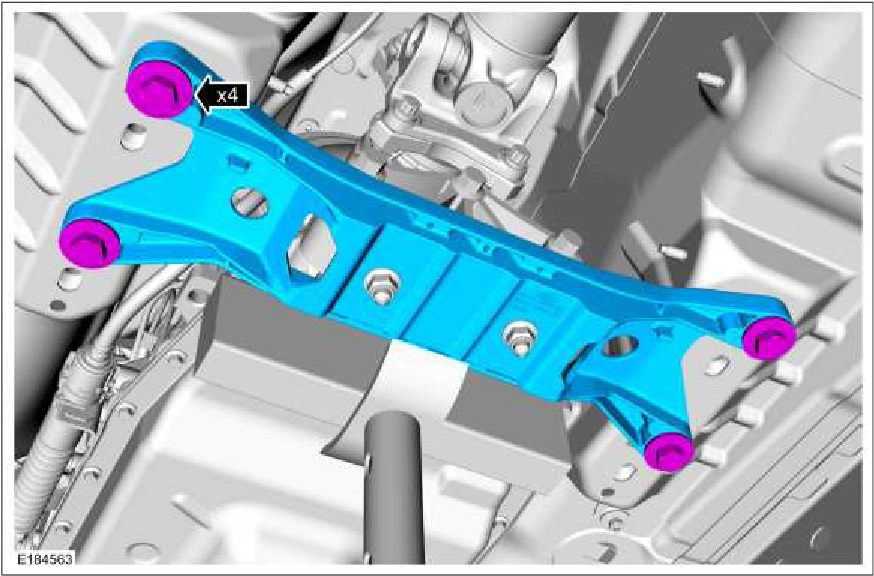

5. With the transmission support crossmember neutralized, tighten the 4 transmission support crossmember bolts. Torque : 46 lb.ft (63 Nm)

Transmission Support Crossmember — original illustration 2, reference 2399Original colors & callouts · Select to enlarge

Source reference 2399
