Transmission Support Crossmember — 2016 workshop reference 2397

Transmission Support Crossmember — original illustration 1, reference 2397Original colors & callouts · Select to enlarge

Installation

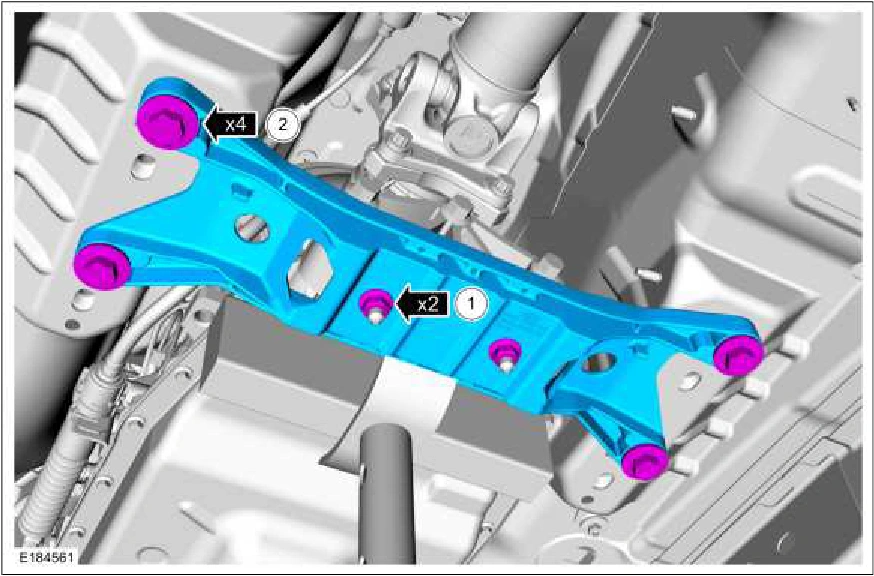

1. With the same orientation as removed, position the transmission support crossmember and loosely install the 2 transmission support insulator-to-transmission support crossmember nuts.

Transmission Support Crossmember — original illustration 2, reference 2397Original colors & callouts · Select to enlarge

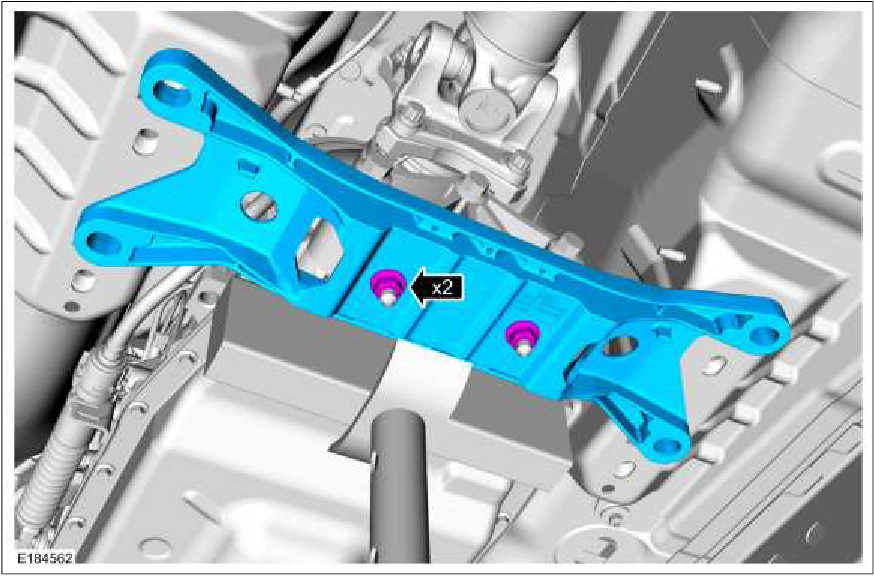

2. Loosely install the 4 transmission support crossmember bolts.

Source reference 2397
