Lower Arm — 2016 workshop reference 2495

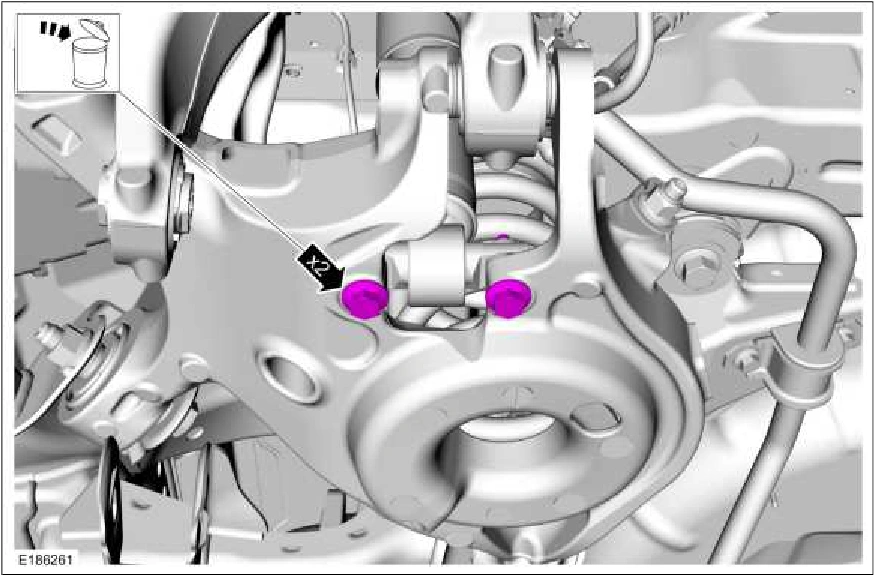

Lower Arm — original illustration 1, reference 2495Original colors & callouts · Select to enlarge

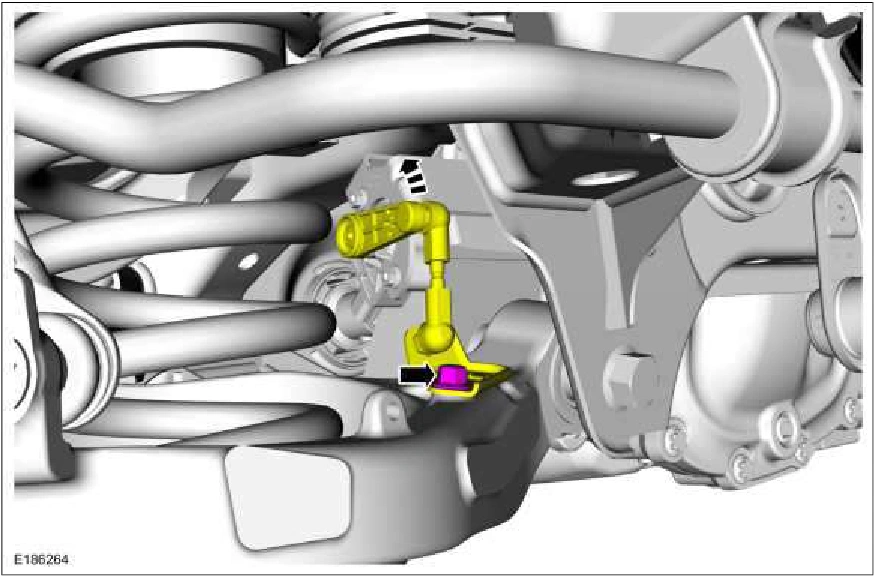

4. NOTE: If equipped with dynamic suspension.

Remove the ride height sensor arm bracket bolt and position the bracket aside.

Lower Arm — original illustration 2, reference 2495Original colors & callouts · Select to enlarge

5. Remove and discard the lower arm vertical link lower bolt and position the lower arm vertical link aside.
