Lower Arm

204-02 Rear Suspension

2016 MustangReference 2,496 / 6,619HTML edition
← Chapter contentsProcedure contents
Lower Arm — original illustration 1, reference 2496Original colors & callouts · Select to enlarge

Step 6

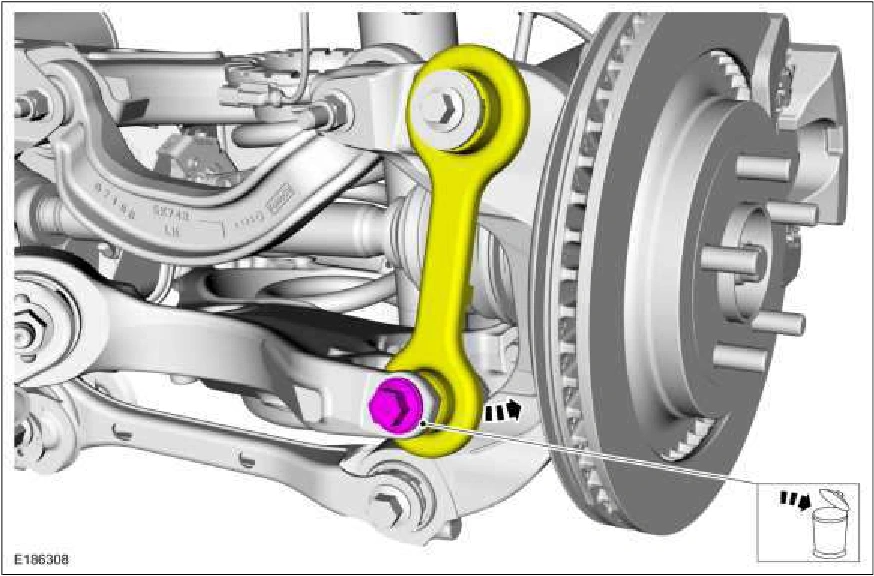

1. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing the stabilizer bar link nut.

Remove and discard the stabilizer bar link lower nut and position the stabilizer bar link aside.

2. Remove and discard the lower control arm-to-wheel knuckle bolt.

Lower Arm — original illustration 2, reference 2496Original colors & callouts · Select to enlarge

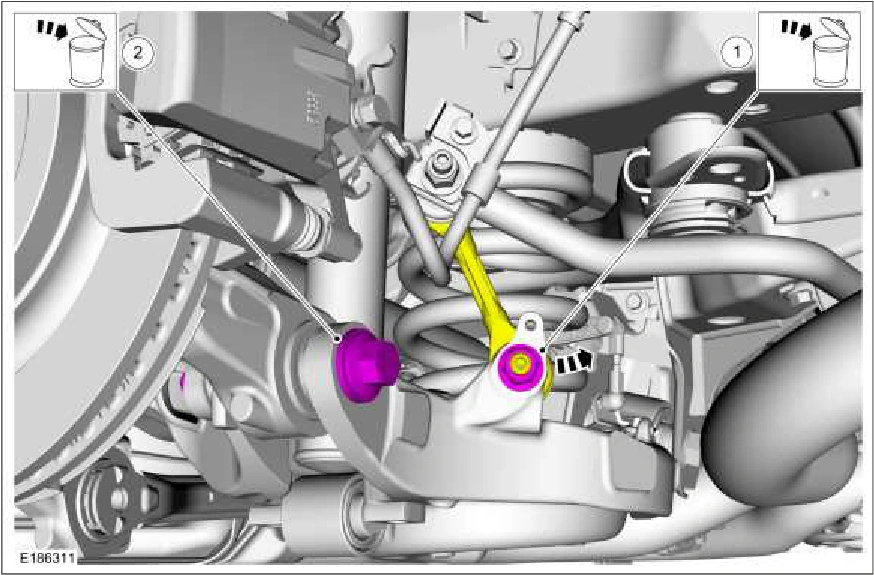

7. NOTE: The muffler and tailpipe must be removed for clearance for the lower control arm rearward bolts.

Remove the muffler and tailpipe.

Source reference 2496
