Lower Arm

204-02 Rear Suspension

2016 MustangReference 2,499 / 6,619HTML edition
← Chapter contentsProcedure contents

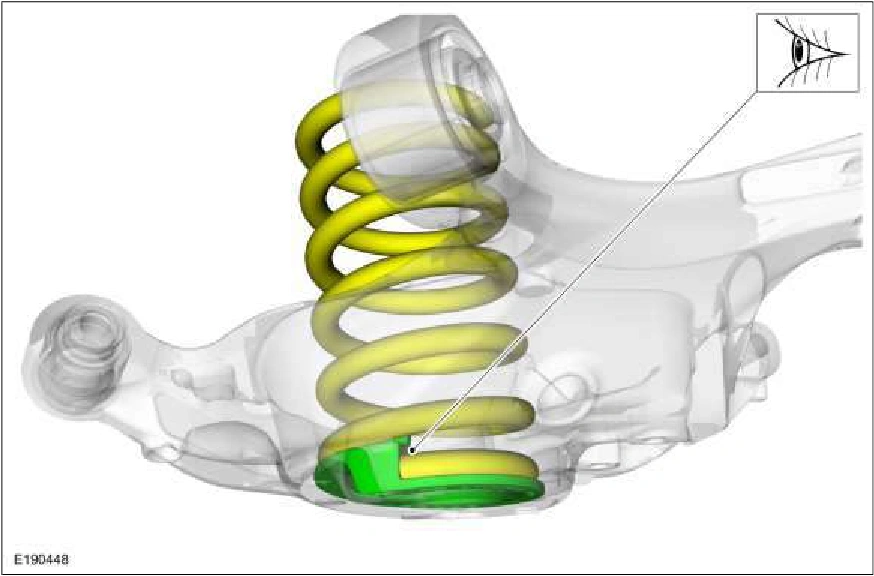

Lower Arm — original illustration 1, reference 2499Original colors & callouts · Select to enlarge

4. NOTE: Only tighten the bolt finger tight at this stage.

Install the new forward lower control arm-to-frame bolt.

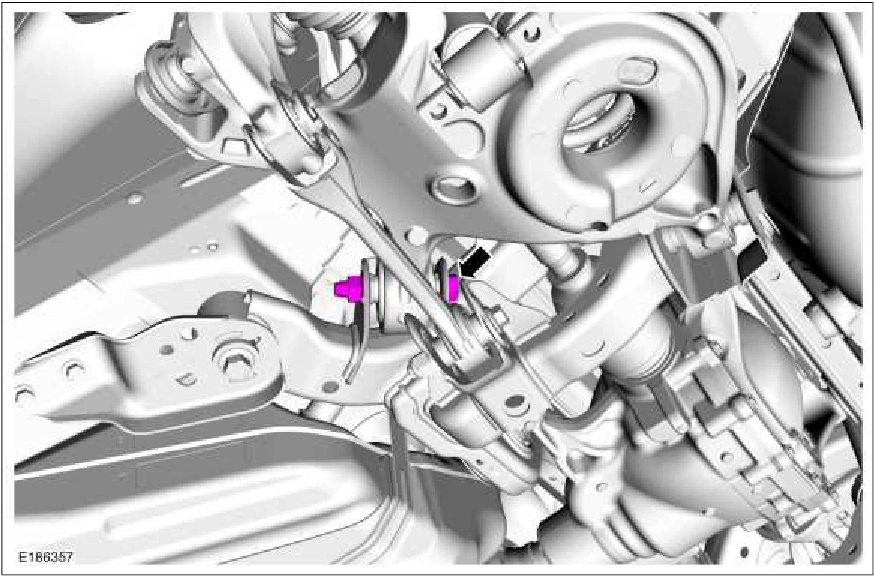

Lower Arm — original illustration 2, reference 2499Original colors & callouts · Select to enlarge

5. NOTE: The muffler and tailpipe were removed for clearance for the lower control arm rearward bolts.

Install the muffler and tailpipe. Refer to: Muffler and Tailpipe (309-00A Exhaust System - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00B Exhaust System - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00D Exhaust System - 5.2L 32V Ti-VCT, Removal and Installation).

Source reference 2499
