Lower Arm

204-02 Rear Suspension

2016 MustangReference 2,500 / 6,619HTML edition
← Chapter contentsProcedure contents

Step 6

1. NOTE: Only tighten the bolt finger tight at this stage.

Install the new lower control arm-to-wheel knuckle bolt.

2. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while installing the stabilizer bar link nut.

Position the stabilizer bar link and install the new stabilizer bar link lower nut.

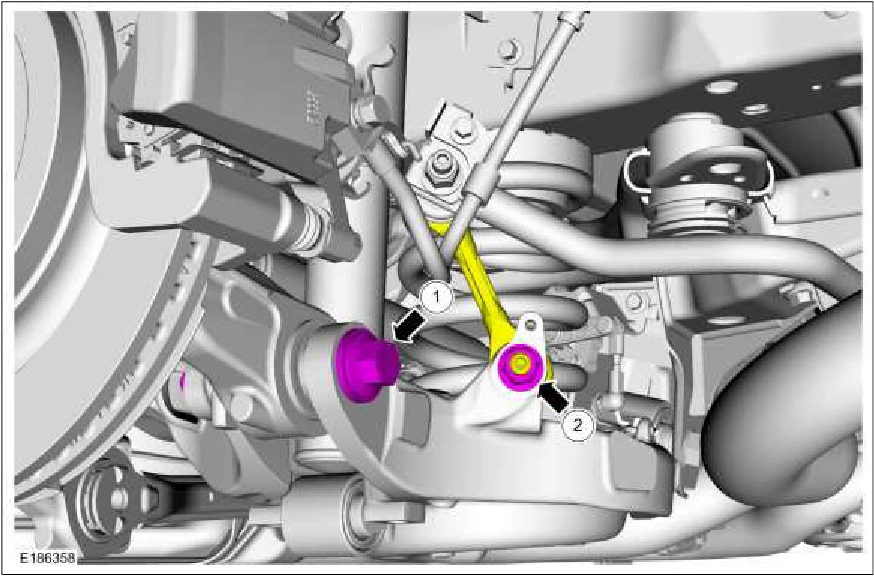

Lower Arm — original illustration 1, reference 2500Original colors & callouts · Select to enlarge

7. NOTE: Only tighten the bolt finger tight at this stage.

Position the lower arm vertical link and install the new lower arm vertical link lower bolt.

Source reference 2500
