Lower Arm

204-02 Rear Suspension

2016 MustangReference 2,503 / 6,619HTML edition
← Chapter contentsProcedure contents

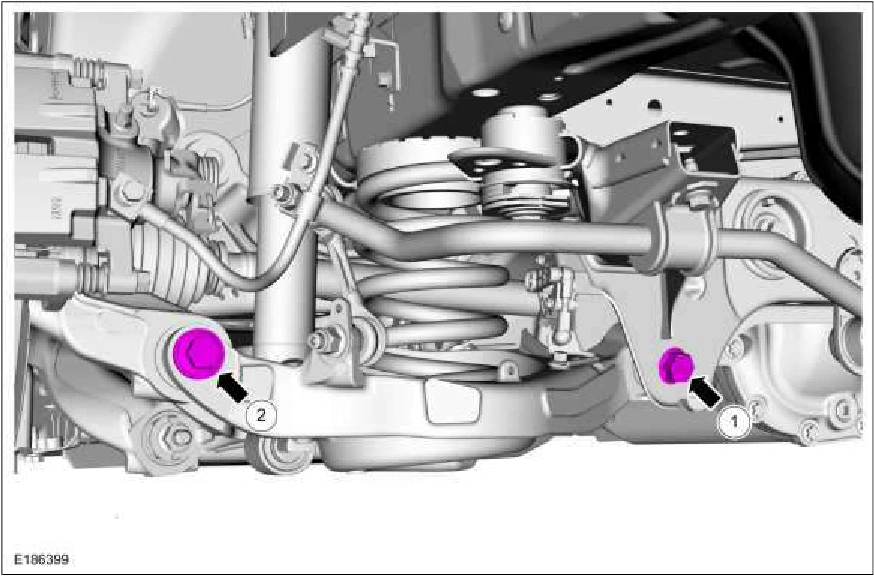

Lower Arm — original illustration 1, reference 2503Original colors & callouts · Select to enlarge

12. NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight

of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Tighten the forward lower control arm-to-frame bolt. Torque : 166 lb.ft (225 Nm)

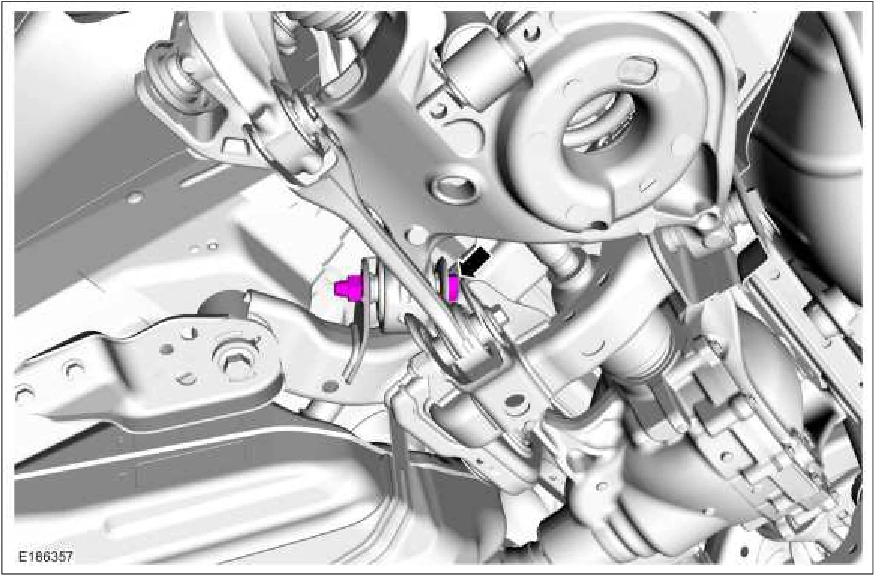

Lower Arm — original illustration 2, reference 2503Original colors & callouts · Select to enlarge

13. NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight

of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Tighten lower arm vertical link lower bolt. Torque : 129 lb.ft (175 Nm)

Source reference 2503
