Lower Arm Vertical Link — 2016 workshop reference 2506

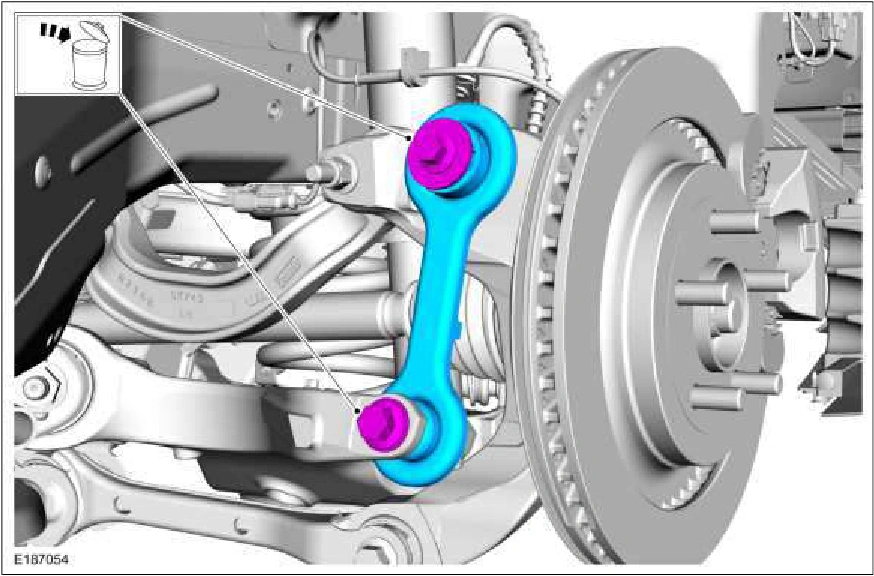

Lower Arm Vertical Link — original illustration 1, reference 2506Original colors & callouts · Select to enlarge

Installation

NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

1. Position the lower arm vertical link and install the 2 new lower arm vertical link bolts.

1. Tighten the lower arm vertical link upper bolt. Torque : 76 lb.ft (103 Nm)

2. Tighten the lower arm vertical link lower bolt. Torque : 129 lb.ft (175 Nm)

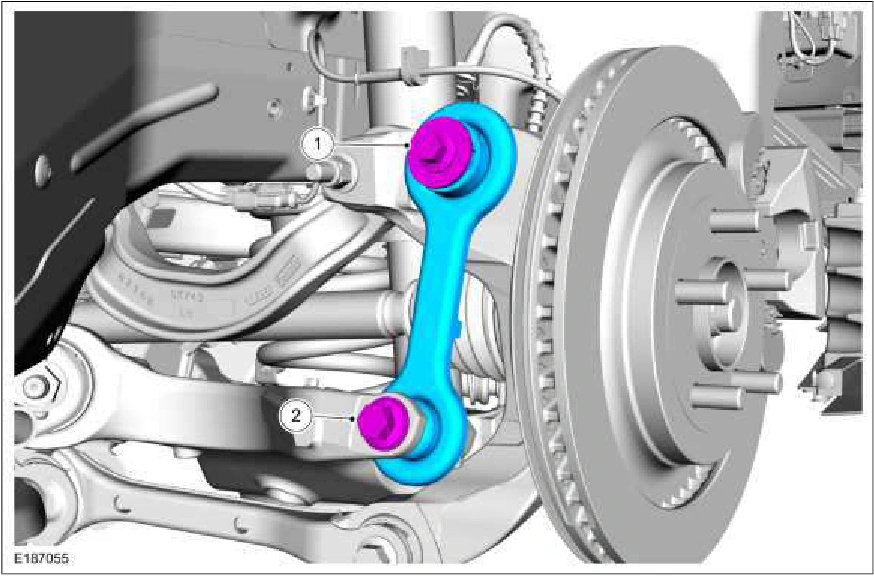

Lower Arm Vertical Link — original illustration 2, reference 2506Original colors & callouts · Select to enlarge

2. Install the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
