Rear Shock Absorber — 2016 workshop reference 2509

Rear Shock Absorber — original illustration 1, reference 2509Original colors & callouts · Select to enlarge

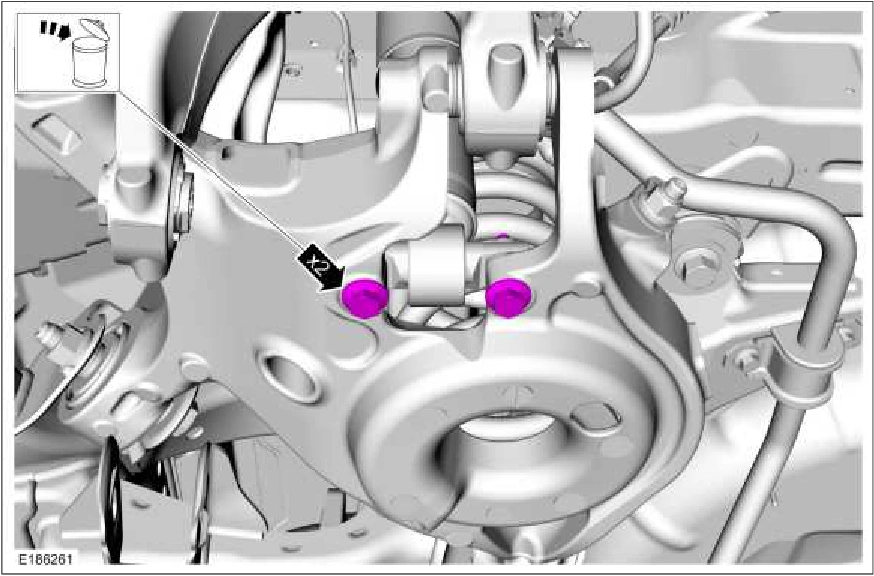

4. Remove and discard the 2 rear shock absorber lower bolts.

Rear Shock Absorber — original illustration 2, reference 2509Original colors & callouts · Select to enlarge

5. Remove and discard the 2 rear shock absorber upper bolts and remove the rear shock absorber.
