2016 workshop · Suspension

Rear Shock Absorber

204-02 Rear Suspension

2016 MustangReference 2,511 / 6,619HTML edition
← Chapter contentsProcedure contents

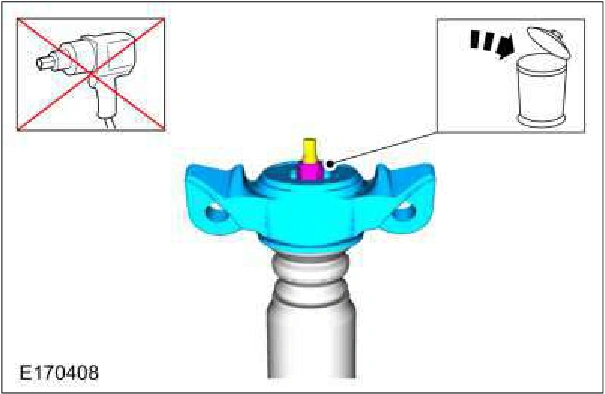

Rear Shock Absorber — original illustration 1, reference 2511Original colors & callouts · Select to enlarge

Installation

1. NOTE: This step is only necessary when installing a new component.

NOTE: Use the hex-holding feature to prevent the shock absorber rod from turning while installing the shock absorber rod nut.

Install the new rear shock absorber rod nut. Torque : 22 lb.ft (30 Nm)

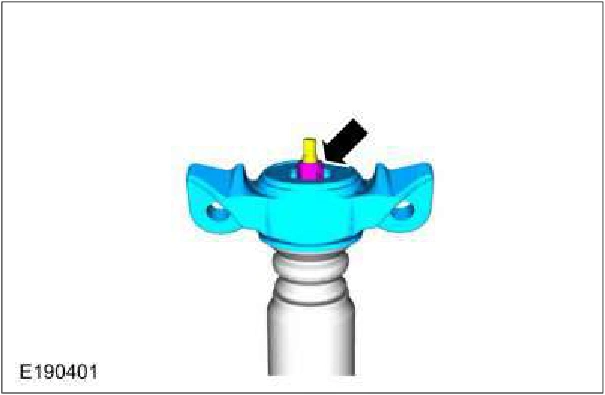

Rear Shock Absorber — original illustration 2, reference 2511Original colors & callouts · Select to enlarge

2. NOTE: This step is only necessary when installing a new component.

NOTE: If equipped.

Install the rear shock absorber rod nut cap.
