Rear Shock Absorber — 2016 workshop reference 2512

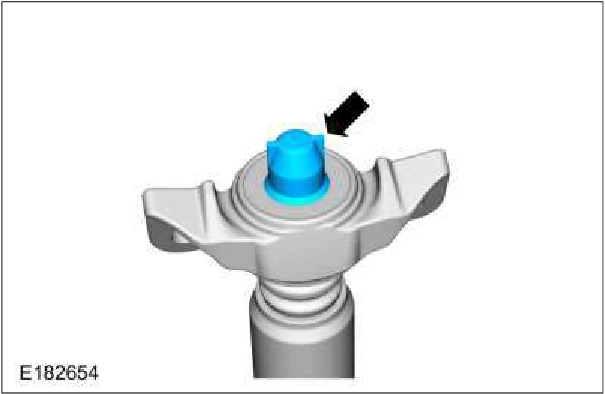

Rear Shock Absorber — original illustration 1, reference 2512Original colors & callouts · Select to enlarge

3. Install the rear shock absorber and install the 2 new rear shock absorber lower bolts. Torque : 35 lb.ft (48 Nm)

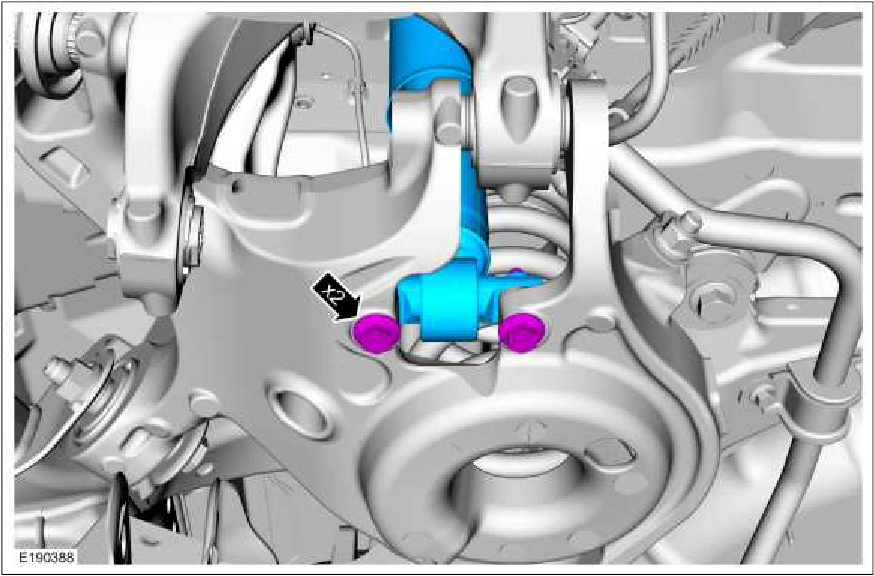

Rear Shock Absorber — original illustration 2, reference 2512Original colors & callouts · Select to enlarge

Step 4

1. Compress the rear shock absorber and align the rear shock absorber upper mount under the body alignment pins.

2. Install the 2 new rear shock absorber upper bolts. Torque : 66 lb.ft (90 Nm)

Source reference 2512
