Rear Stabilizer Bar — 2016 workshop reference 2515

Rear Stabilizer Bar — original illustration 1, reference 2515Original colors & callouts · Select to enlarge

Installation

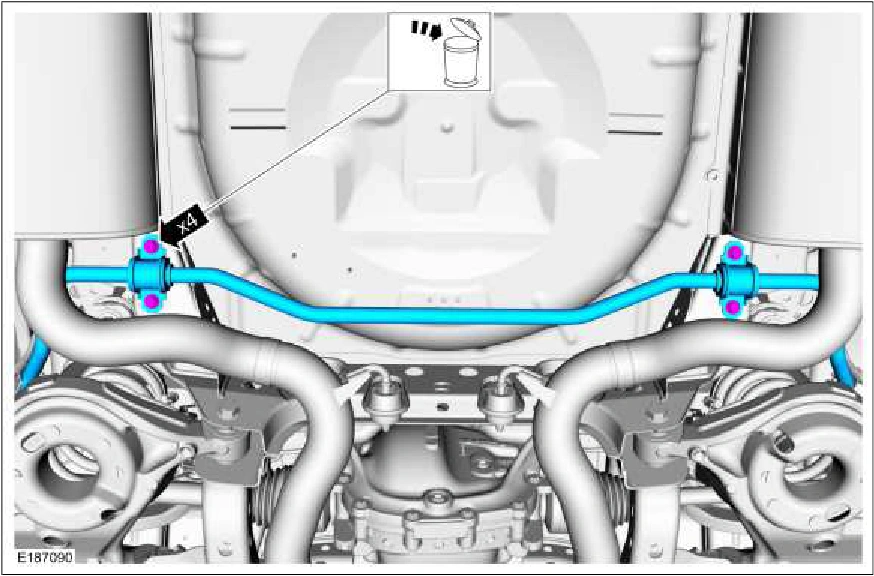

1. Position the stabilizer bar, the stabilizer bar brackets and install the 4 new stabilizer bar bracket bolts. Torque : 52 lb.ft (70 Nm)

Rear Stabilizer Bar — original illustration 2, reference 2515Original colors & callouts · Select to enlarge

Step 2

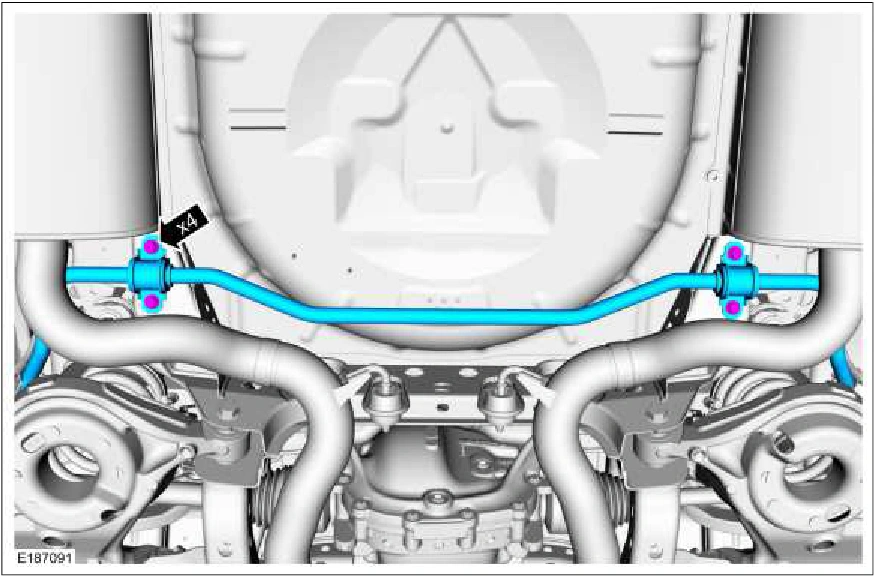

1. On both sides. Position the stabilizer bar link.

2. NOTE: Use the hex-holding feature to prevent the ball stud from turning while installing the stabilizer bar link nut.

On both sides. Install the new stabilizer bar link upper nut.

Source reference 2515
