Rear Stabilizer Bar Bushing — 2016 workshop reference 2518

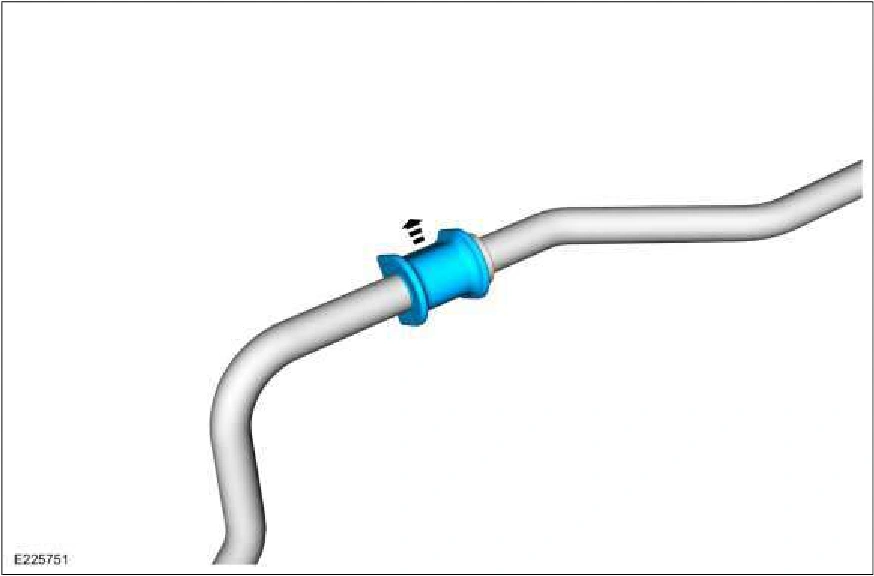

Rear Stabilizer Bar Bushing — original illustration 1, reference 2518Original colors & callouts · Select to enlarge

Installation

1. NOTICE: Do not use any lubrication on the stabilizer bar or the bushings or damage to the

bushings may occur.

NOTE: Stabilizer bar bushings must be installed with slits facing the front of the vehicle.

On both sides. Install the rear stabilizer bar bushing.

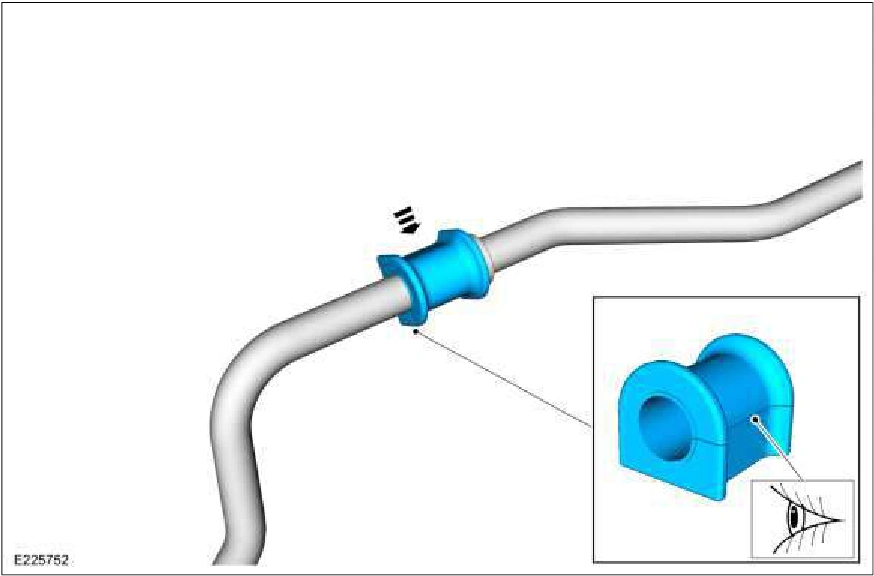

Rear Stabilizer Bar Bushing — original illustration 2, reference 2518Original colors & callouts · Select to enlarge

2. NOTE: Water may be applied to the bracket to aid in installation.

On both sides.

1. Install the rear stabilizer bar bushing bracket.
