Rear Stabilizer Bar Link

204-02 Rear Suspension 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTICE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the

stabilizer bar link ball joints and boots may occur.

NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing the stabilizer bar link nut.

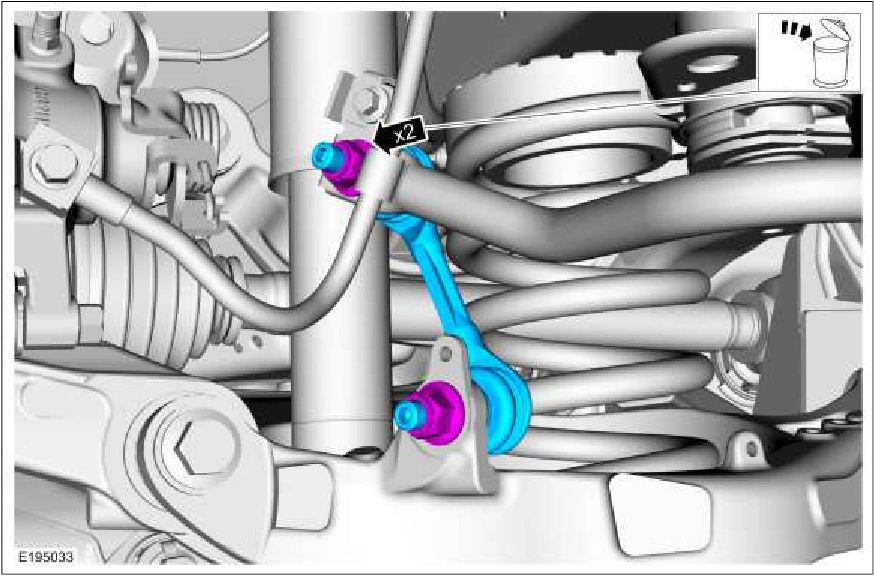

Remove and discard the 2 rear stabilizer bar link nuts and remove the rear stabilizer bar link. Torque : 85 lb.ft (115 Nm)

Rear Stabilizer Bar Link — original illustration 1, reference 2520Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 2520
