Toe Link

204-02 Rear Suspension 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

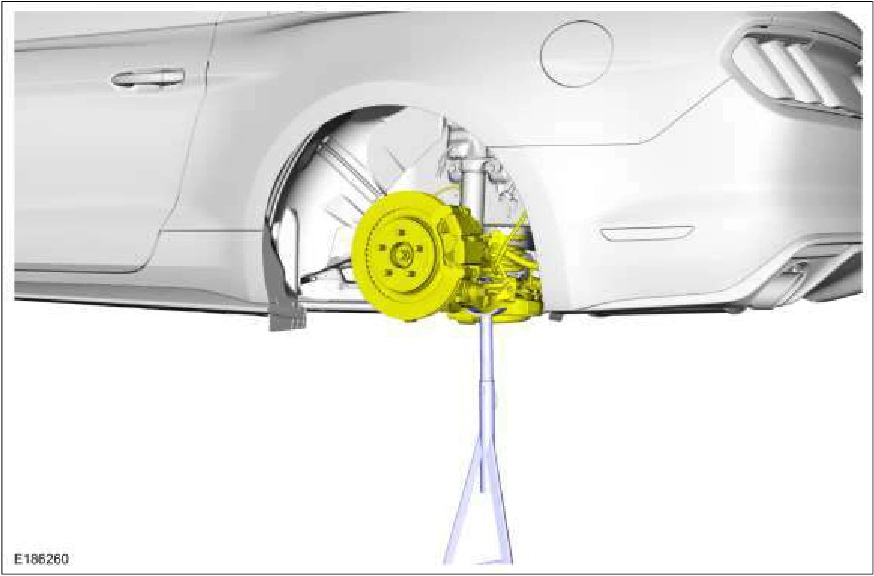

2. Support the suspension at curb height.

Toe Link — original illustration 1, reference 2523Original colors & callouts · Select to enlarge

Step 3

1. Index mark both the inner and outer cam wheels for use during assembly.

2. Remove and discard the toe link-to-knuckle bolt and nut, the toe link-to-frame bolt and nut and remove the toe link.

Source reference 2523
