Spring — 2016 workshop reference 2522

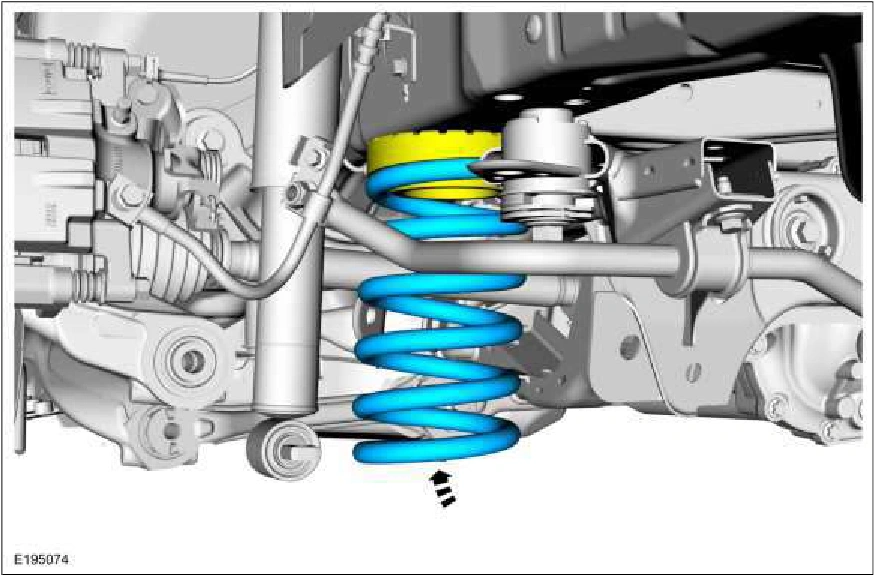

Spring — original illustration 1, reference 2522Original colors & callouts · Select to enlarge

2. Make sure that the spring is correctly located in the upper spring seat.

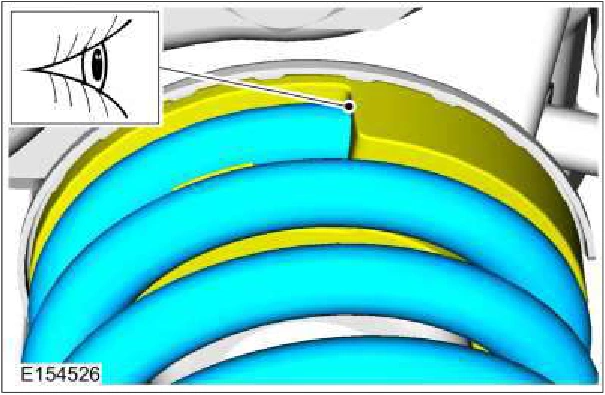

Spring — original illustration 2, reference 2522Original colors & callouts · Select to enlarge

3. Install the lower arm. Refer to: Lower Arm (204-02 Rear Suspension, Removal and Installation).

Source reference 2522
