Toe Link — 2016 workshop reference 2524

Toe Link — original illustration 1, reference 2524Original colors & callouts · Select to enlarge

Installation

NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

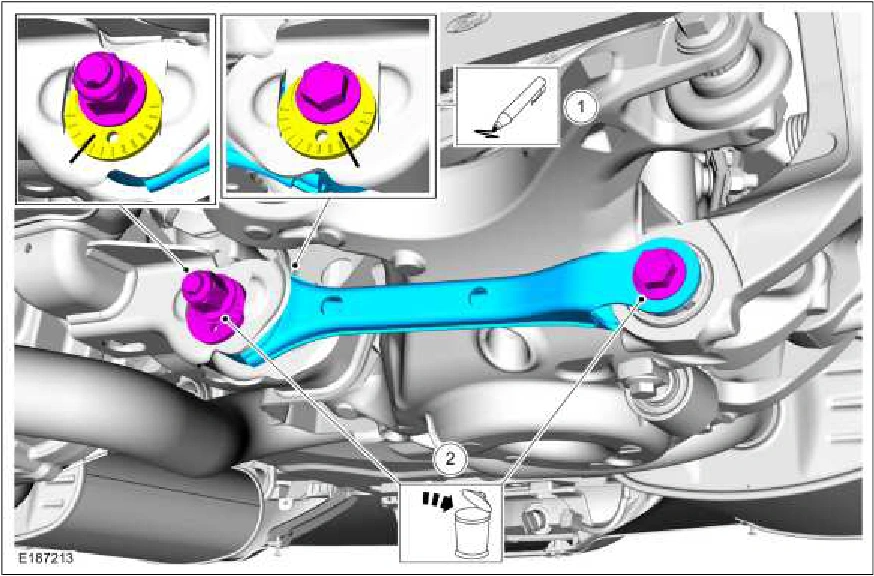

1. NOTE: Align reference marks made during removal.

Position the toe link.

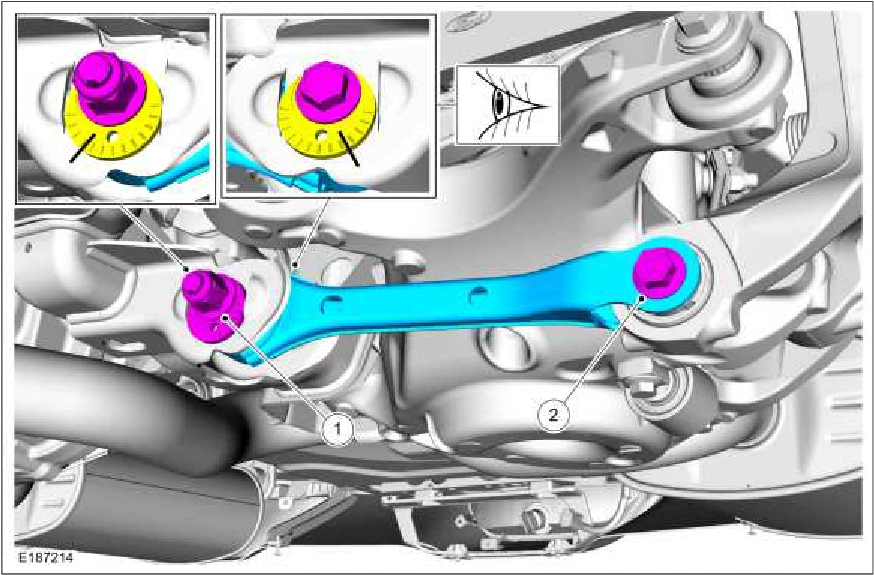

1. Install the new toe link-to-frame bolt and nut. Torque : 129 lb.ft (175 Nm)

2. Install the new toe link-to-knuckle bolt and nut. Torque : 129 lb.ft (175 Nm)

Toe Link — original illustration 2, reference 2524Original colors & callouts · Select to enlarge

Source reference 2524
