Spring

204-02 Rear Suspension 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Removal

1. Remove the lower arm. Refer to: Lower Arm (204-02 Rear Suspension, Removal and Installation).

2. Remove the spring.

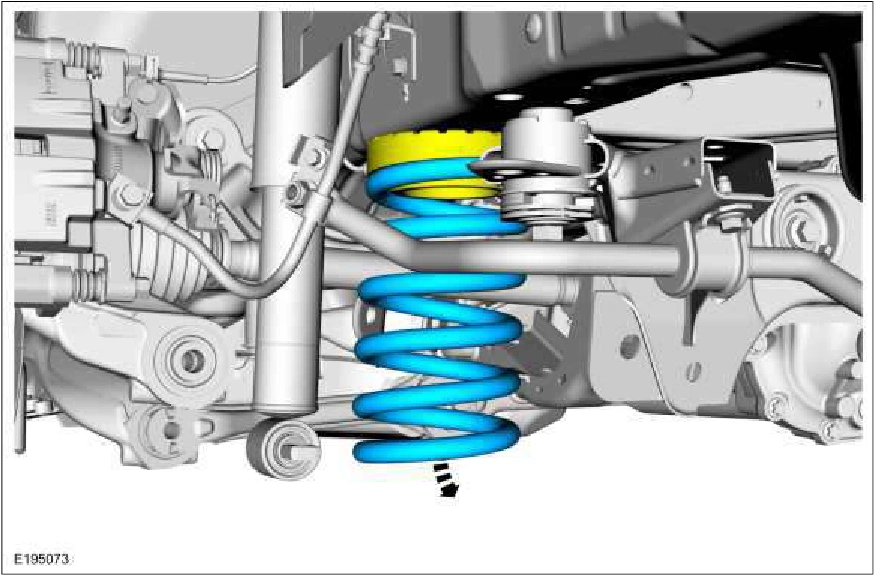

Spring — original illustration 1, reference 2521Original colors & callouts · Select to enlarge

3. Inspect the upper spring seat for damage. Replace as necessary.

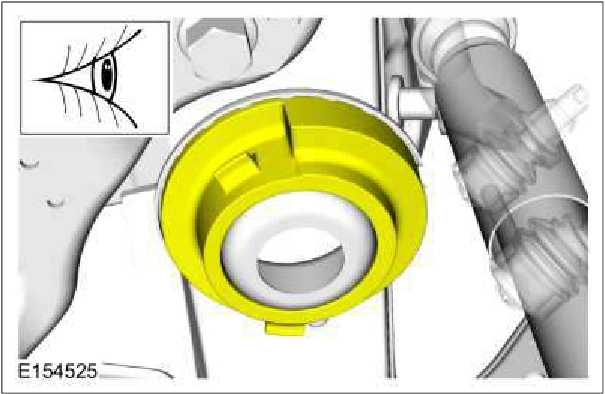

Spring — original illustration 2, reference 2521Original colors & callouts · Select to enlarge

Installation

1. Install the spring.

Source reference 2521
