Rear Stabilizer Bar Bushing

204-02 Rear Suspension 2016 Mustang

Removal and Installation Procedure revision date: 12/7/2015

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. On both sides.

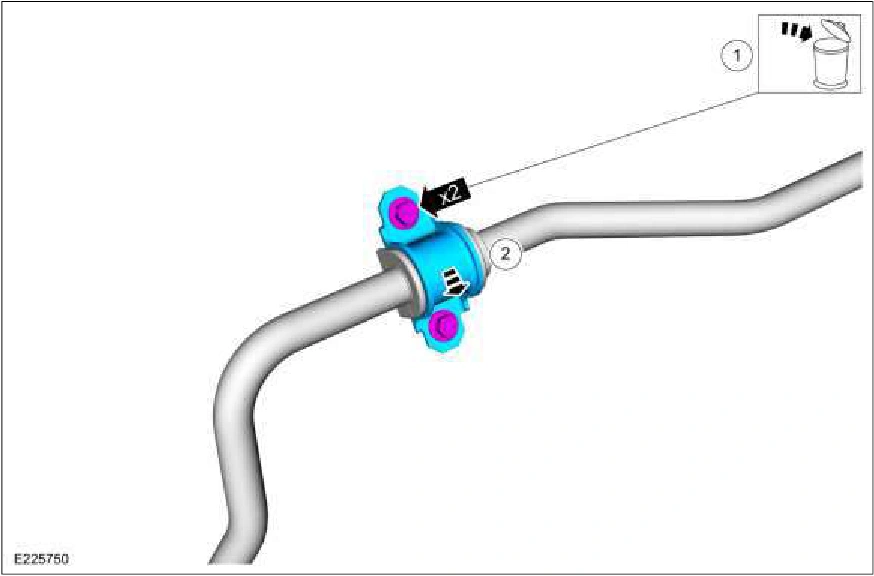

1. Remove and discard the rear stabilizer bar bushing bracket bolts.

2. Remove the rear stabilizer bar bushing bracket.

Rear Stabilizer Bar Bushing — original illustration 1, reference 2517Original colors & callouts · Select to enlarge

3. On both sides. Remove the rear stabilizer bar bushing.

Source reference 2517
