Rear Shock Absorber — 2016 workshop reference 2513

Rear Shock Absorber — original illustration 1, reference 2513Original colors & callouts · Select to enlarge

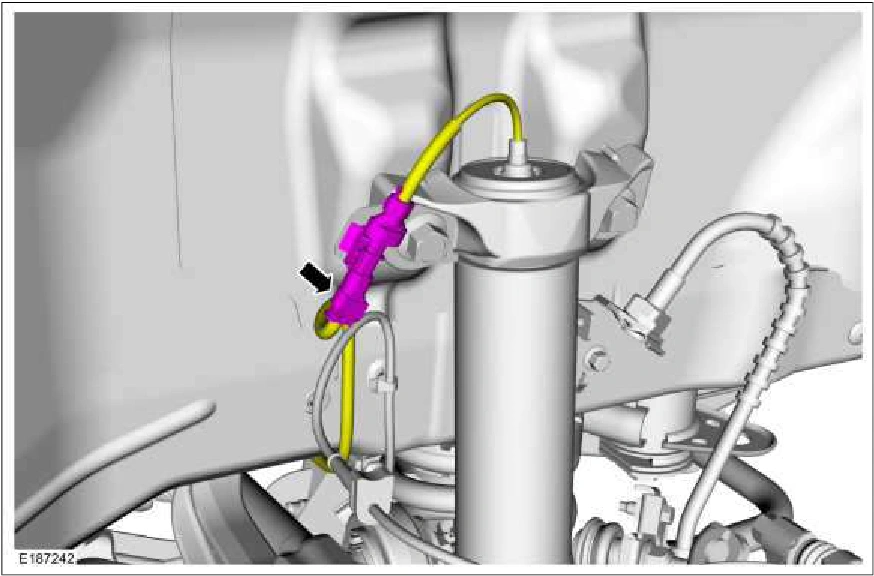

5. NOTE: If equipped with dynamic suspension.

Connect the rear shock absorber electrical connector.

Rear Shock Absorber — original illustration 2, reference 2513Original colors & callouts · Select to enlarge

6. Install the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
