Lower Arm — 2016 workshop reference 2501

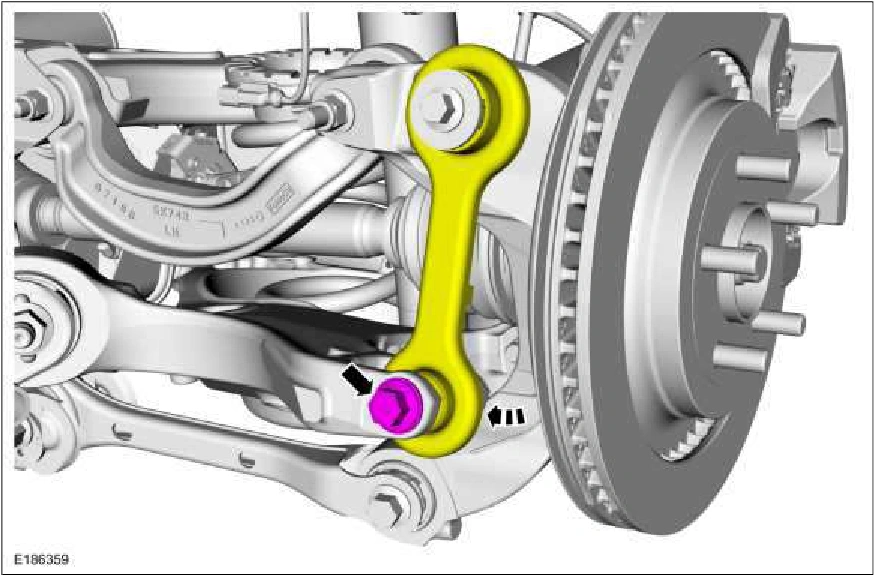

Lower Arm — original illustration 1, reference 2501Original colors & callouts · Select to enlarge

8. NOTE: If equipped with dynamic suspension.

Position the ride height sensor arm bracket and install the ride height sensor arm bracket bolt. Torque : 177 lb.in (20 Nm)

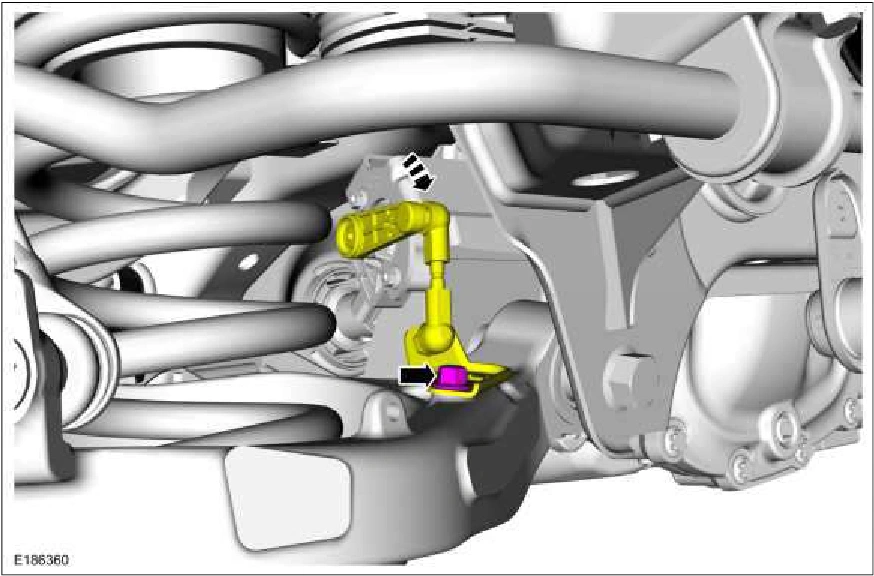

Lower Arm — original illustration 2, reference 2501Original colors & callouts · Select to enlarge

9. Install the 2 new lower shock absorber bolts. Torque : 35 lb.ft (48 Nm)

Source reference 2501
