Lower Arm — 2016 workshop reference 2498

Installation

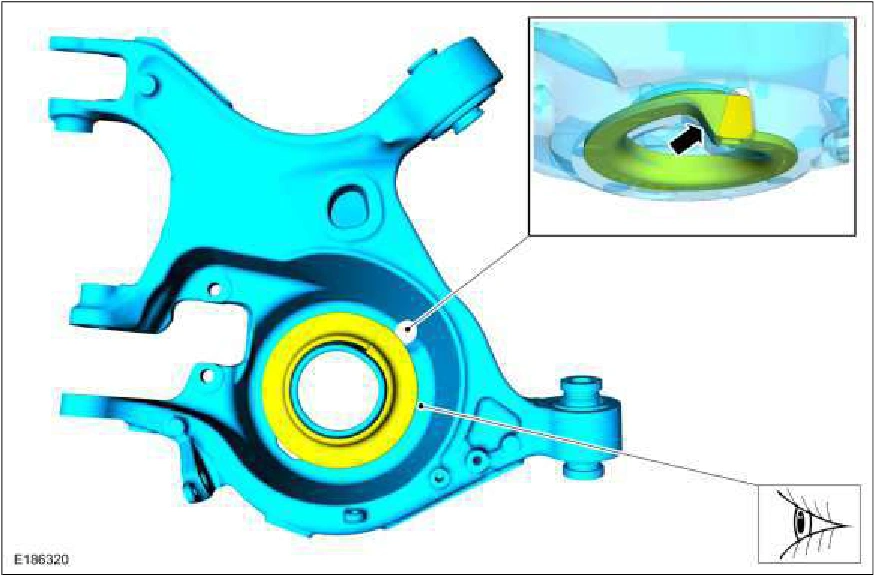

1. Inspect the lower coil spring seat. Make sure it is properly aligned in the lower control arm.

Lower Arm — original illustration 1, reference 2498Original colors & callouts · Select to enlarge

Step 2

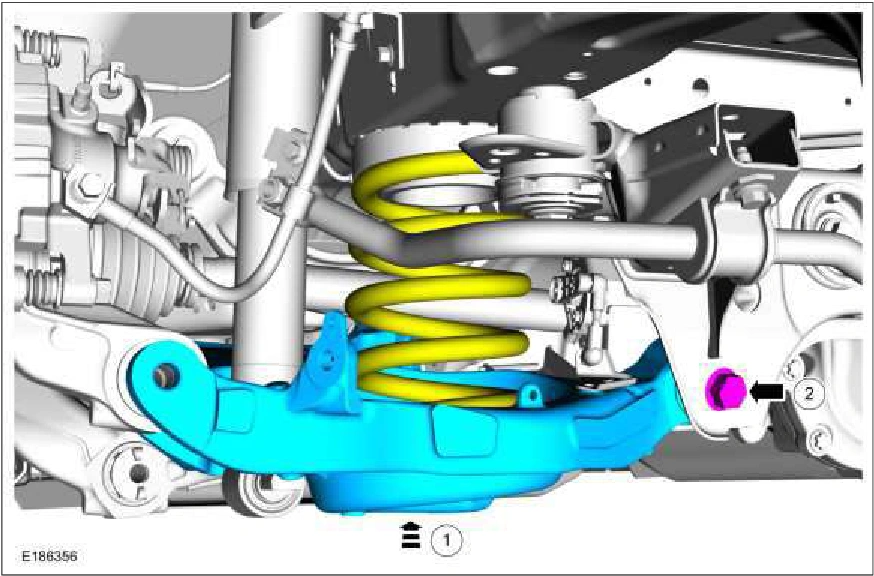

1. Position the lower control arm.

2. NOTE: Only tighten the bolt finger tight at this stage.

Install the new rearward lower control arm-to-frame bolt.

Lower Arm — original illustration 2, reference 2498Original colors & callouts · Select to enlarge

3. Make sure that the coil spring is properly positioned in the lower coil spring seat.
