8. Remove and discard the forward lower control arm-to-frame bolt.

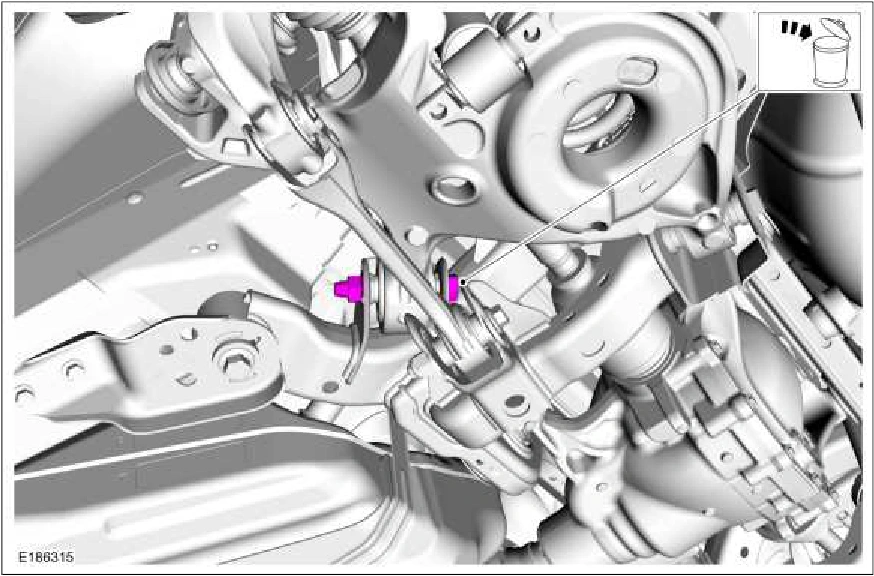

Lower Arm — original illustration 1, reference 2497Original colors & callouts · Select to enlarge
Step 9
1. Support the coil spring.
2. Remove and discard the rearward lower control arm-to-frame bolt.
3. Remove the lower control arm.

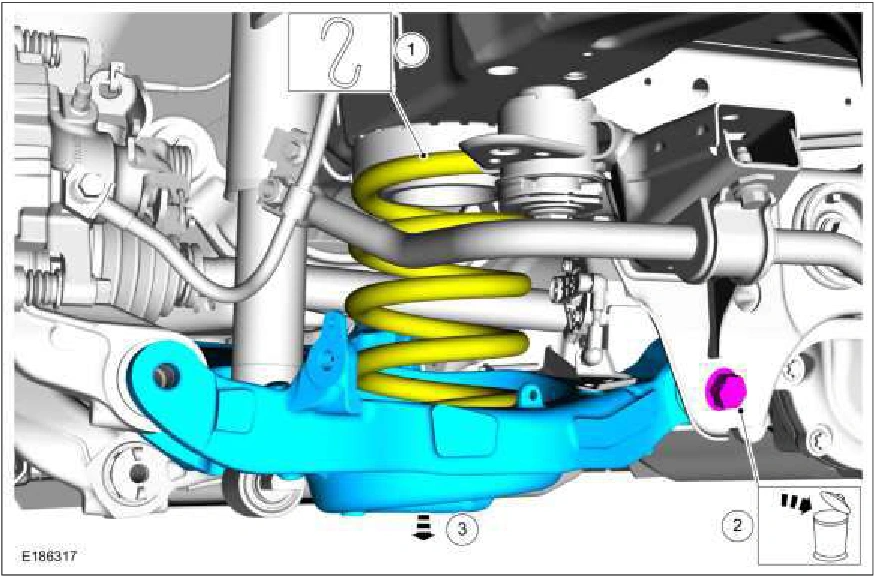

Lower Arm — original illustration 2, reference 2497Original colors & callouts · Select to enlarge
Source reference 2497
