Lower Arm — 2016 workshop reference 2502

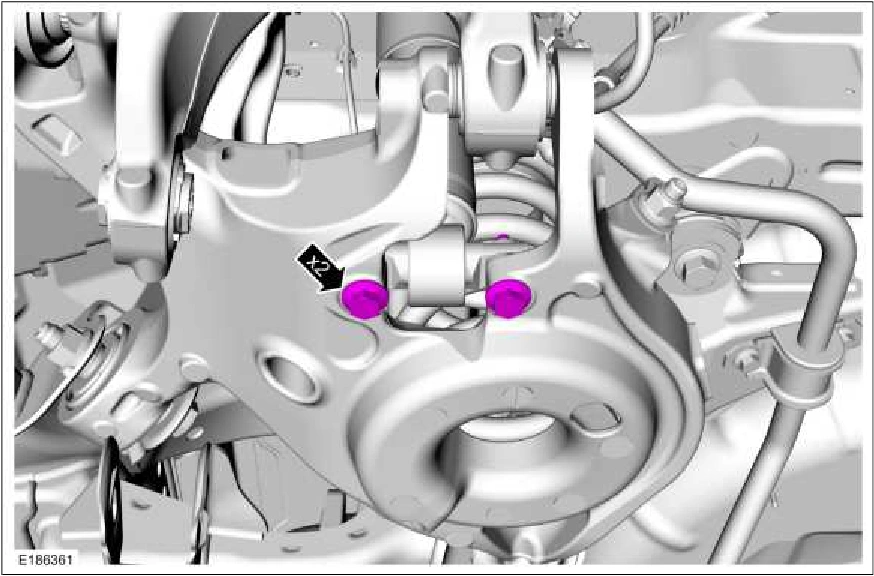

Lower Arm — original illustration 1, reference 2502Original colors & callouts · Select to enlarge

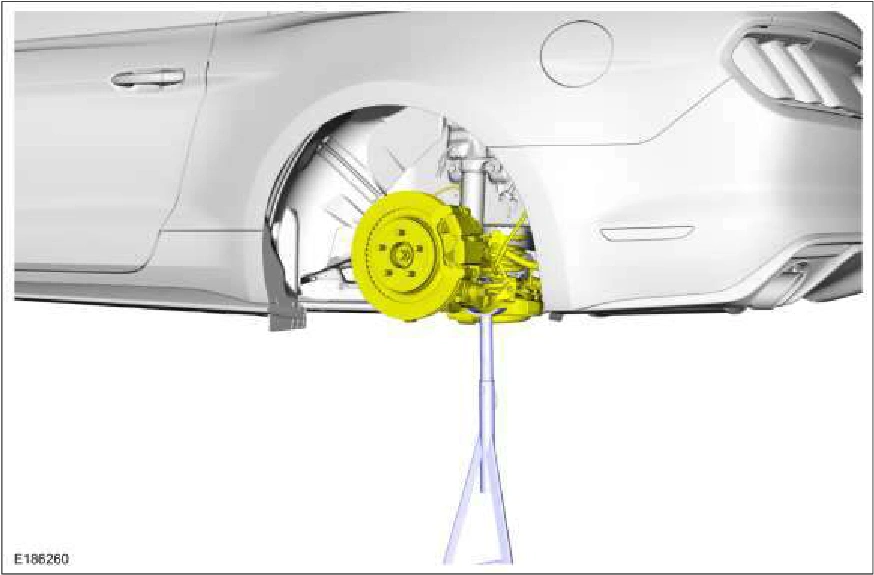

10. Support the suspension at curb height. Use the General Equipment: Vehicle/Axle Stands

Lower Arm — original illustration 2, reference 2502Original colors & callouts · Select to enlarge

11. NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight

of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

1. Tighten the rearward lower control arm-to-frame bolt. Torque : 184 lb.ft (250 Nm)

2. Tighten the lower control arm-to-wheel knuckle bolt. Torque : 203 lb.ft (275 Nm)
