Exhaust Manifold RH — 2016 workshop reference 259

Exhaust Manifold RH — original illustration 1, reference 259Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

6. Install the transmission cooling tube bracket and nut. Torque : 35 lb.ft (48 Nm)

Exhaust Manifold RH — original illustration 2, reference 259Original colors & callouts · Select to enlarge

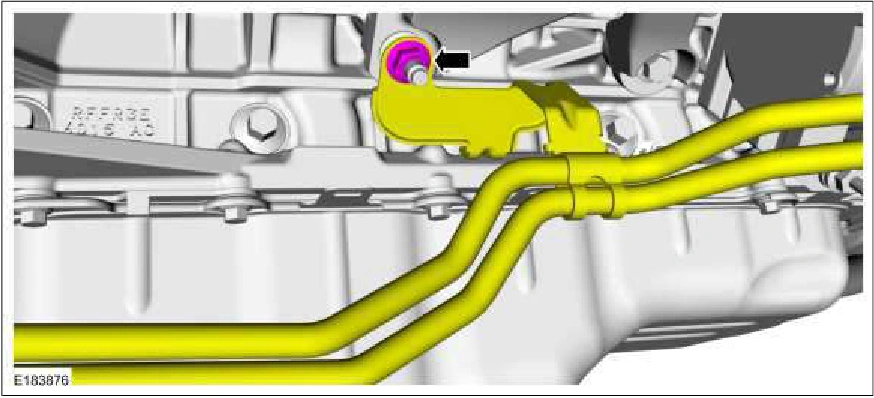

7. Install the transmission cooling tube bracket and nut. Torque : 124 lb.in (14 Nm)

Source reference 259
