Exhaust Manifold RH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 260 / 6,619HTML edition
← Chapter contentsProcedure contents
Exhaust Manifold RH — original illustration 1, reference 260Original colors & callouts · Select to enlarge

8. Connect the HO2S electrical connector.

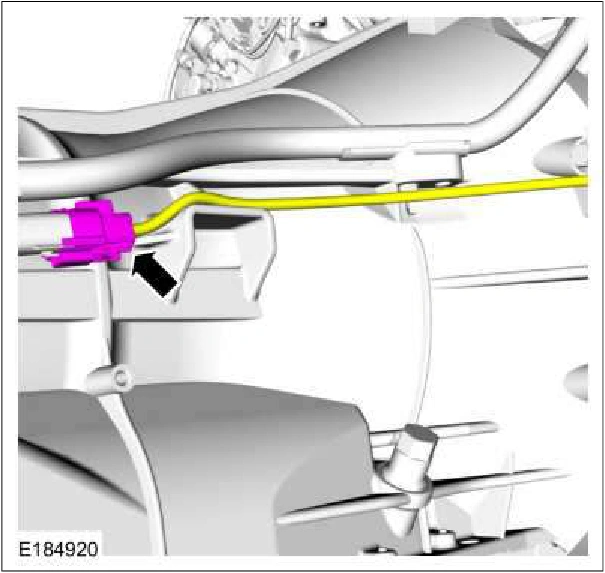

Exhaust Manifold RH — original illustration 2, reference 260Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

9. Install the following items:

1. Refer to: Starter Motor (303-06C Starting System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Catalytic Converter RH (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

10. Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.

Source reference 260
