Exhaust Manifold RH — 2016 workshop reference 257

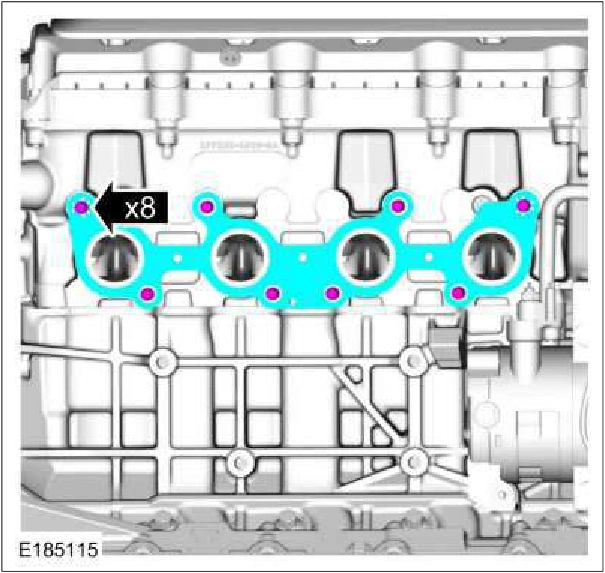

Exhaust Manifold RH — original illustration 1, reference 257Original colors & callouts · Select to enlarge

2. Install the exhaust manifold. Install the new nuts. Torque :

Stage 1: 18 lb.ft (24 Nm) Stage 2: 24 lb.ft (32 Nm)

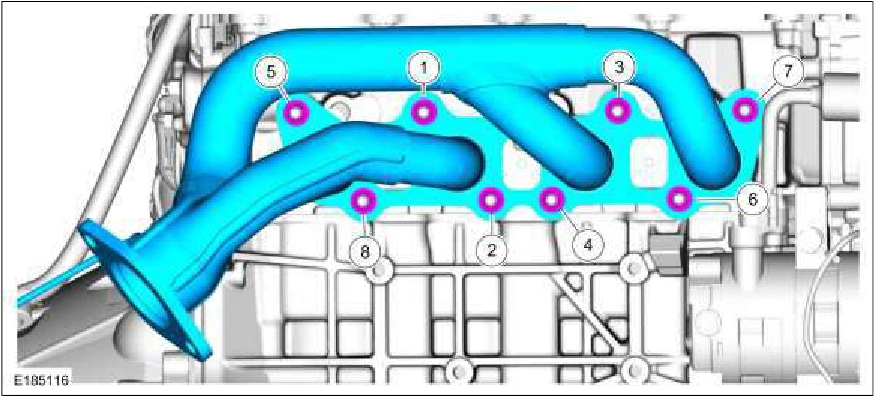

Exhaust Manifold RH — original illustration 2, reference 257Original colors & callouts · Select to enlarge

3. Install the RH engine mount bracket, bolts and stud bolts. Torque : 41 lb.ft (55 Nm)

Source reference 257
