Exhaust Manifold RH — 2016 workshop reference 254

Exhaust Manifold RH — original illustration 1, reference 254Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

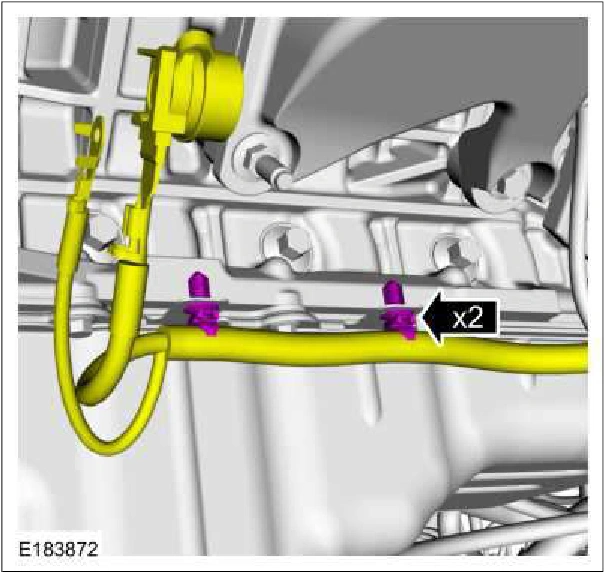

20. Detach the wiring harness retainers from the oil pan.

Exhaust Manifold RH — original illustration 2, reference 254Original colors & callouts · Select to enlarge

21. Remove the nut and ground strap from the RH engine mount bracket stud bolt.

Source reference 254
