Exhaust Manifold RH — 2016 workshop reference 255

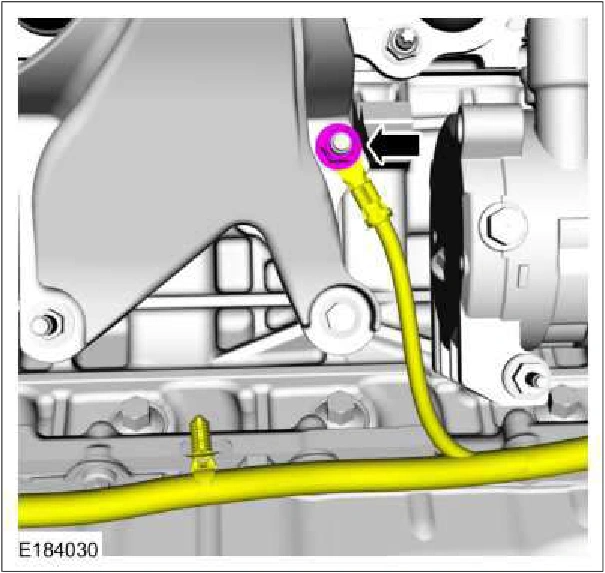

Exhaust Manifold RH — original illustration 1, reference 255Original colors & callouts · Select to enlarge

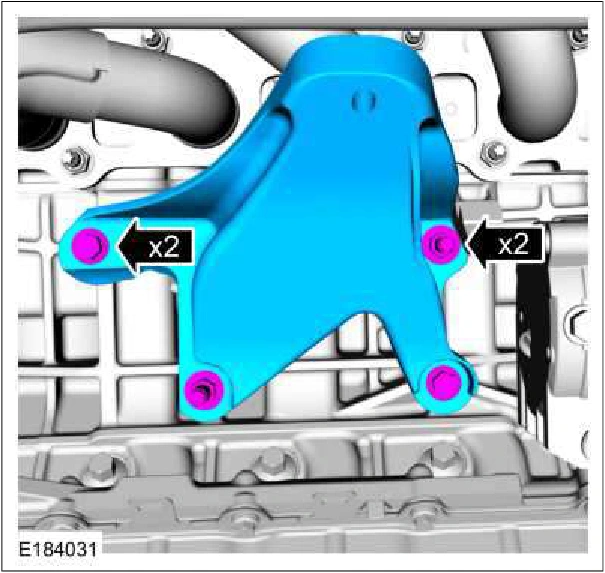

22. Remove the bolts, the stud bolts and the RH engine mount bracket.

Exhaust Manifold RH — original illustration 2, reference 255Original colors & callouts · Select to enlarge

23. Remove and discard the nuts.

Remove the exhaust manifold. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection (303-00 Engine System - General Information, General Procedures).
