Exhaust Manifold RH — 2016 workshop reference 253

Exhaust Manifold RH — original illustration 1, reference 253Original colors & callouts · Select to enlarge

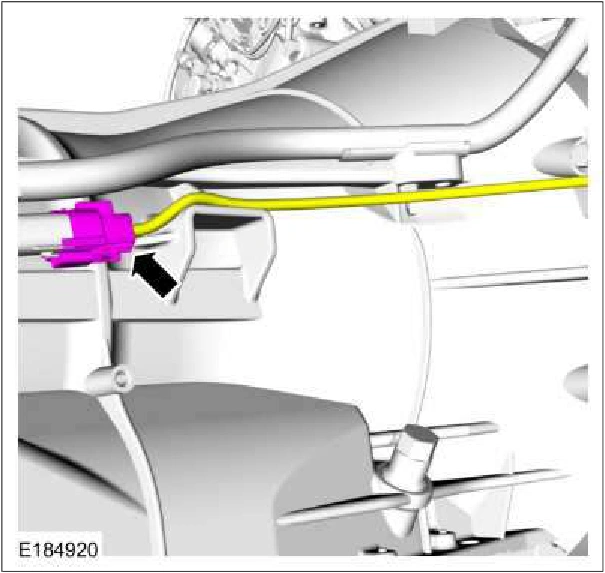

18. Remove the transmission cooling tube nut and bracket from the flexplate inspection cover stud bolt.

Exhaust Manifold RH — original illustration 2, reference 253Original colors & callouts · Select to enlarge

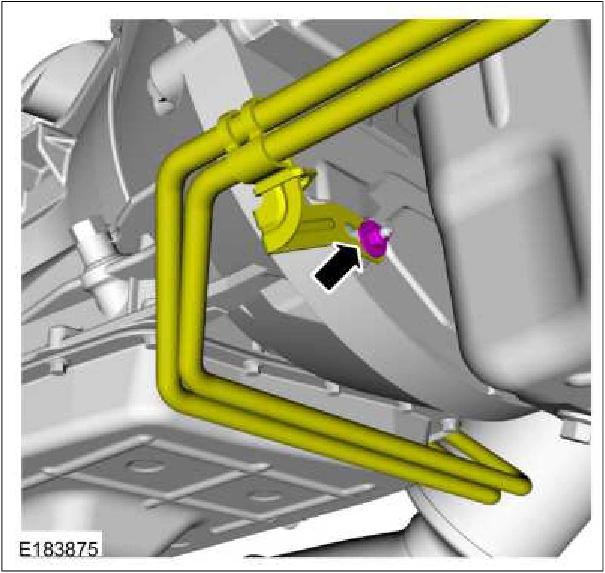

19. Remove the transmission cooling tube bracket nut and position the bracket and tubes aside.
