Exhaust Manifold RH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 250 / 6,619HTML edition
← Chapter contentsProcedure contents
Exhaust Manifold RH — original illustration 1, reference 250Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

11. Disconnect the HO2S electrical connector and wiring harness retainer.

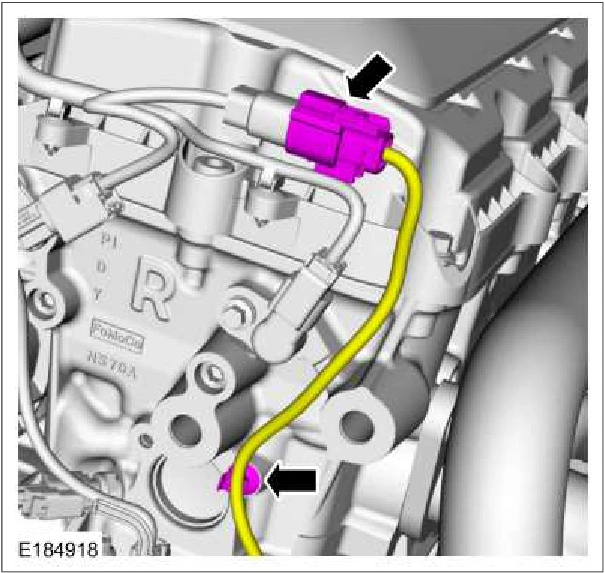

Exhaust Manifold RH — original illustration 2, reference 250Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

12. Disconnect the CMP sensor electrical connector, the wiring harness retainers and position the

harness aside. Remove the bolt and the CMP sensor.

Source reference 250
