Exhaust Manifold RH — 2016 workshop reference 256

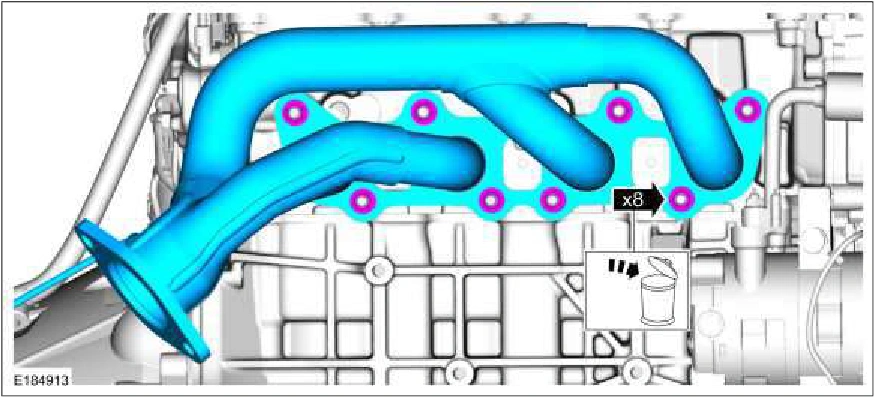

Exhaust Manifold RH — original illustration 1, reference 256Original colors & callouts · Select to enlarge

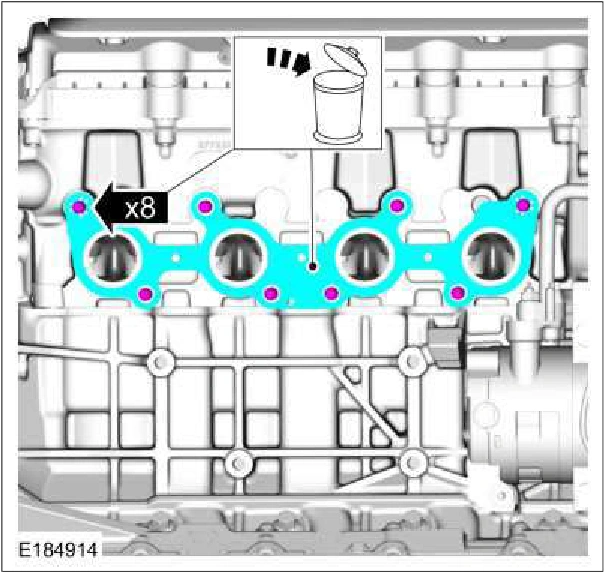

24. Remove and discard the gasket and studs.

Exhaust Manifold RH — original illustration 2, reference 256Original colors & callouts · Select to enlarge

Installation

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

1. Install new studs and new gasket. Torque : 18 lb.ft (25 Nm)

Source reference 256
