Front Suspension Height Sensor

204-05 Vehicle Dynamic Suspension 2016 Mustang

Removal and Installation Procedure revision date: 08/10/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

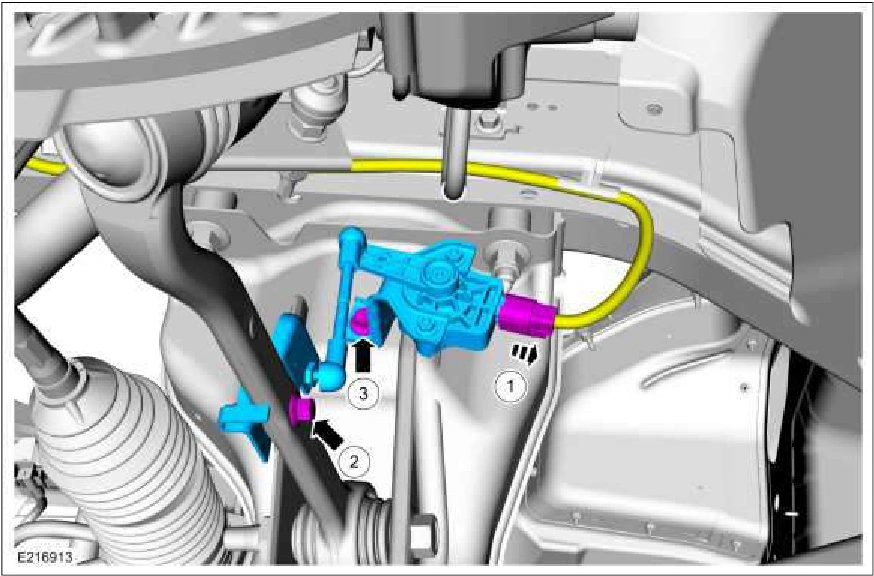

2. NOTE: Note the position of the components before removal.

NOTE: LH height sensor assembly shown, RH similar.

1. Disconnect the front suspension height sensor electrical connector.

2. Remove the front suspension height sensor arm bracket-to-lower arm bolt. Torque : 177 lb.in (20 Nm)

3. Remove the front suspension height sensor bracket mounting bolt and remove the sensor. Torque : 177 lb.in (20 Nm)

Front Suspension Height Sensor — original illustration 1, reference 2634Original colors & callouts · Select to enlarge

Installation

1. NOTICE: The linkage must be in a vertical position after installation. Failure to follow these

instructions may result in component damage and/or failure.

NOTE: The RH and LH height sensor assemblies cannot be used on opposite sides of the vehicle.

To install, reverse the removal procedure.

2. Calibrate the suspension system. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
