Vehicle Dynamics Control Module (VDM) — 2016 workshop reference 2637

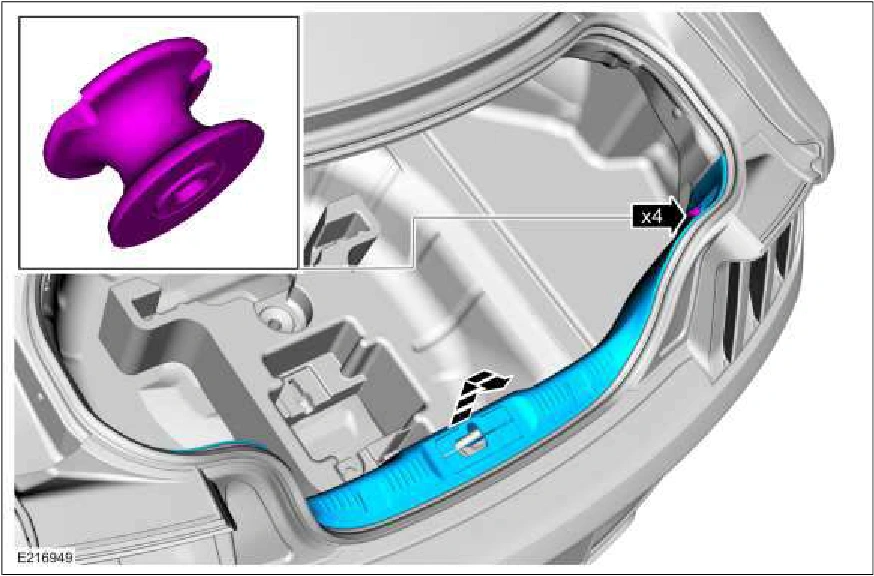

Vehicle Dynamics Control Module (VDM) — original illustration 1, reference 2637Original colors & callouts · Select to enlarge

3. Position aside the RH load space trim panel.

Vehicle Dynamics Control Module (VDM) — original illustration 2, reference 2637Original colors & callouts · Select to enlarge

Step 4

1. Disconnect the VDM electrical connector.

2. Remove the VDM retainers and remove the VDM. Torque : 93 lb.in (10.5 Nm)

Source reference 2637
