Vehicle Dynamics Control Module (VDM)

204-05 Vehicle Dynamic Suspension 2016 Mustang

Removal and Installation Procedure revision date: 01/20/2016

Removal

NOTICE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

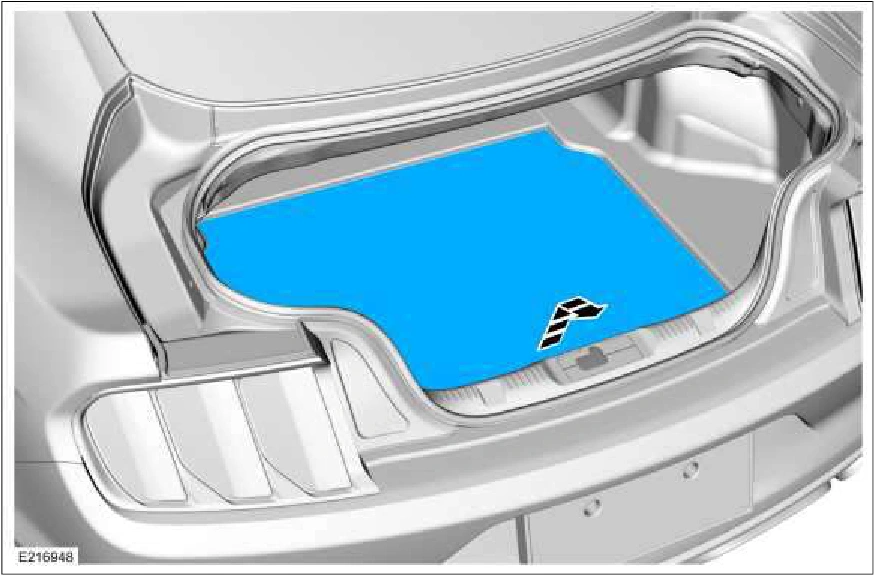

1. Remove the load space floor panel.

Vehicle Dynamics Control Module (VDM) — original illustration 1, reference 2636Original colors & callouts · Select to enlarge

2. Remove the load space rear trim panel.

Source reference 2636
