Anti-Lock Brake System (ABS) Module
Base Part Number: 2C219
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. NOTE: This step is necessary when installing a new HCU or ABS module.
NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.
2. Remove the HCU. Refer to: Hydraulic Control Unit (HCU) (206-09 Anti-Lock Brake System (ABS) and Stability Control, Removal and Installation).
3. NOTICE: Make sure the HCU and ABS module are clean and free of any brake fluid or foreign
material before separating the components. Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or component damage can occur.

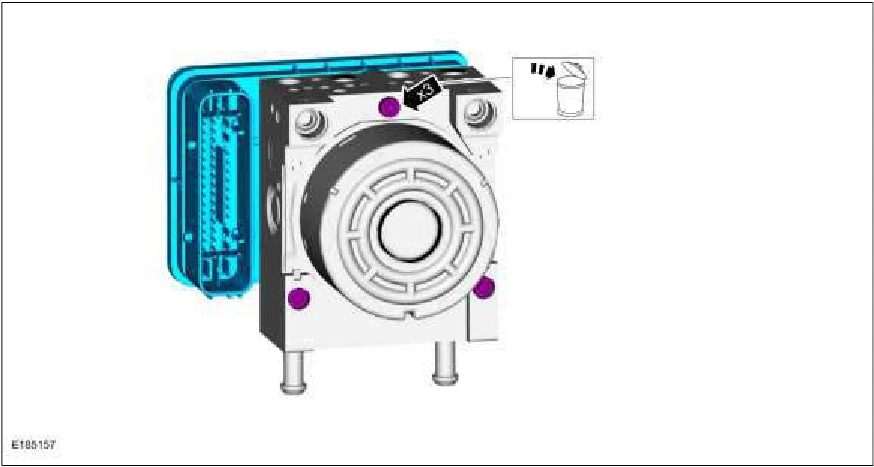

4. Remove the 3 retainers and ABS. Discard the retainers. Torque : 44 lb.in (5 Nm)
Installation
1. To install, reverse the removal procedure.
2. NOTE: This step is necessary when installing a new HCU or ABS module.
Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.
3. If a new HCU/ ABS module was installed, carryout the IVD initialization using the scan tool and following the diagnostic scan tool on-screen instructions.
