Hydraulic Control Unit (HCU)

206-09 Anti-Lock Brake System (ABS) and Stability Control 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Base Part Number: 2C405

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: This step is necessary when installing a new HCU or ABS module.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

2. Disconnect the ABS module electrical connector.

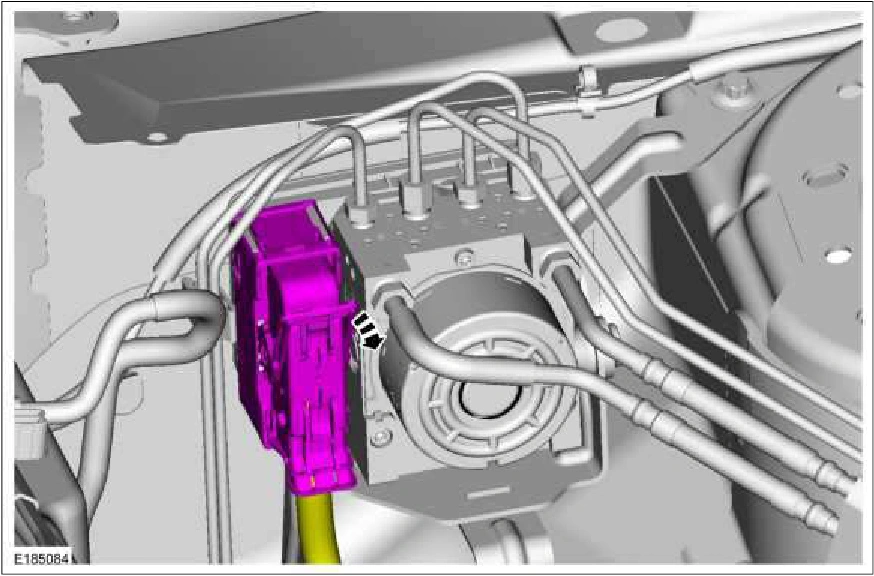

Hydraulic Control Unit (HCU) — original illustration 1, reference 3010Original colors & callouts · Select to enlarge

3. NOTE: Make sure that all openings are sealed.

Disconnect the 6 brake tube fittings. Torque :

1.: 155 lb.in (17.5 Nm)

2.: 20 lb.ft (27.5 Nm)

Source reference 3010
