Hydraulic Control Unit (HCU) — 2016 workshop reference 3011

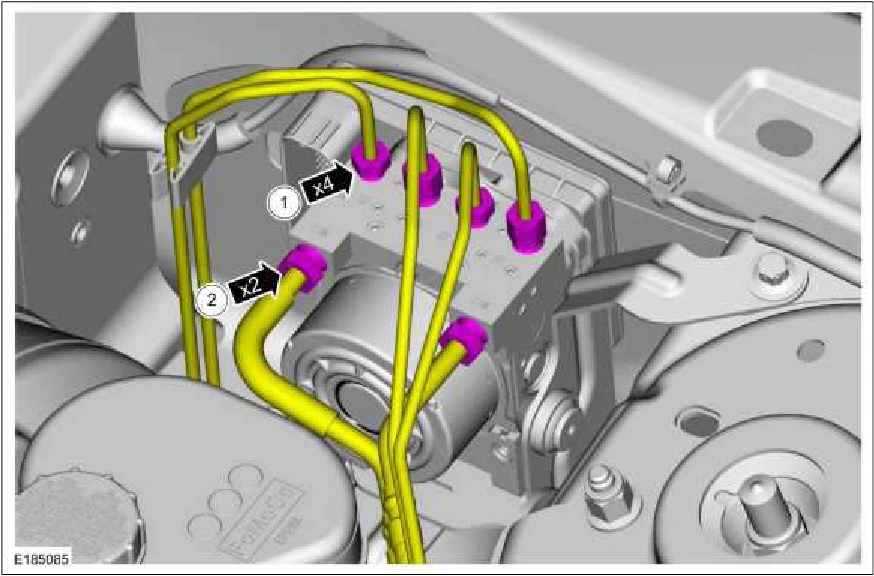

Hydraulic Control Unit (HCU) — original illustration 1, reference 3011Original colors & callouts · Select to enlarge

4. Remove the bolt and separate the HCU from the bracket. Torque : 80 lb.in (9 Nm)

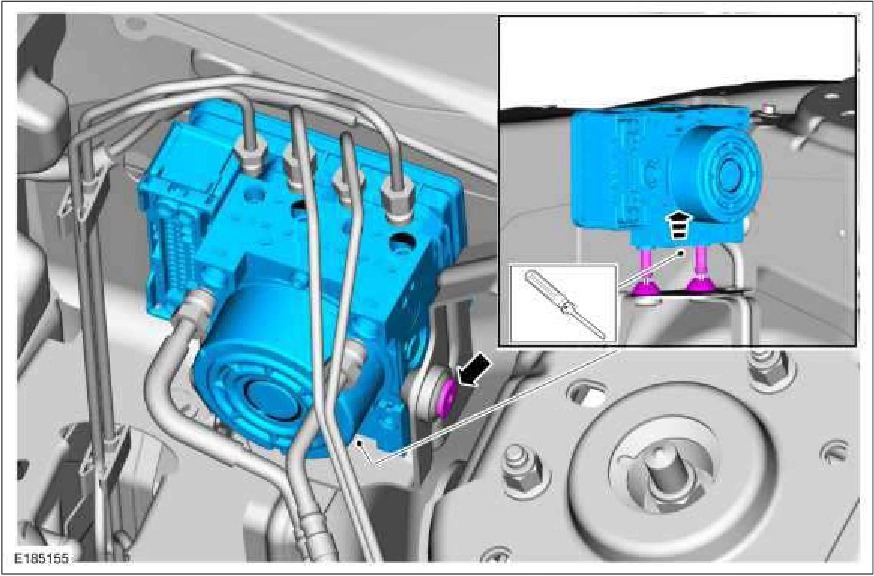

Hydraulic Control Unit (HCU) — original illustration 2, reference 3011Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. NOTE: The following steps are necessary if a new HCU or ABS module was installed.

Using a diagnostic scan tool, complete the PMI process for the ABS module following the on-screen instructions. Carry out the IVD initialization using the scan tool and following the diagnostic scan tool on-screen instructions.

Source reference 3011
