Front Wheel Speed Sensor — 2016 workshop reference 3014

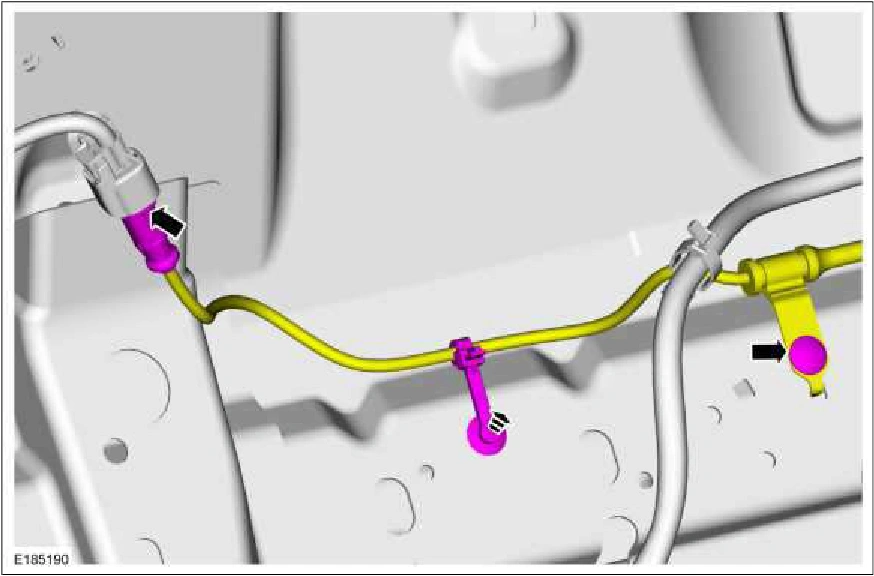

Front Wheel Speed Sensor — original illustration 1, reference 3014Original colors & callouts · Select to enlarge

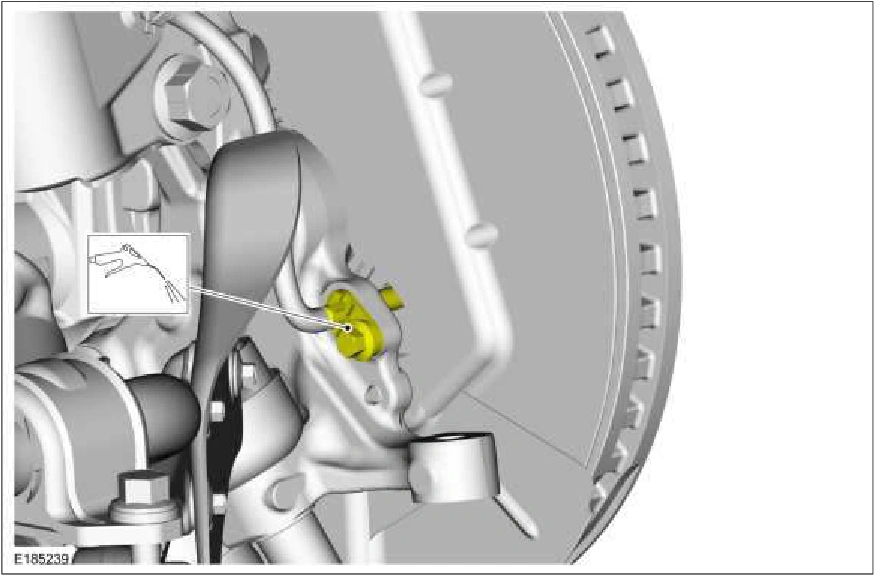

4. Using compressed air, clean the area surrounding the front wheel speed sensor.

Front Wheel Speed Sensor — original illustration 2, reference 3014Original colors & callouts · Select to enlarge

Step 5

1. Detach the 2 sensor harness retainers.

2. Remove the bolt and the front wheel speed sensor. Torque : 133 lb.in (15 Nm)

Source reference 3014
