Rear Wheel Speed Sensor

206-09 Anti-Lock Brake System (ABS) and Stability Control 2016 Mustang

Removal and Installation Procedure revision date: 08/4/2015

Base Part Number: 2C190

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

2. Using compressed air, clean the area surrounding the rear wheel speed sensor.

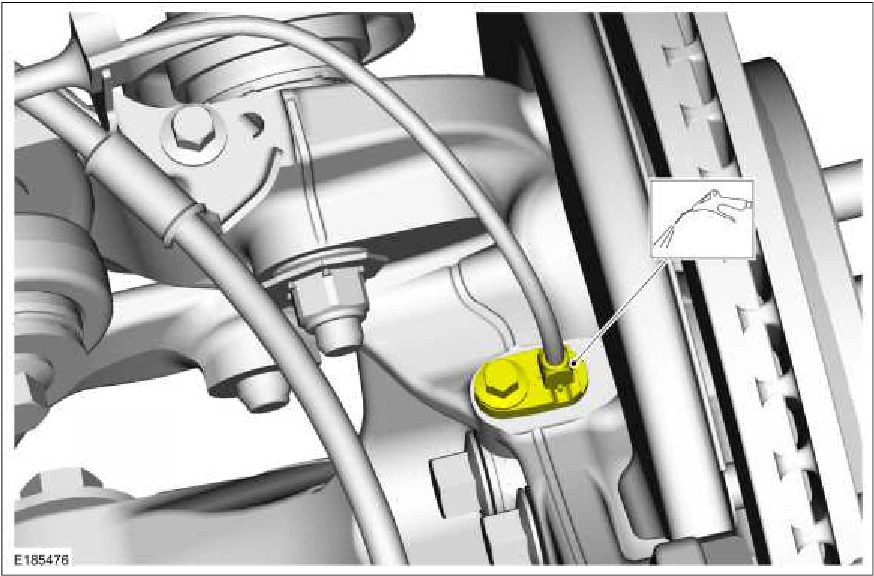

Rear Wheel Speed Sensor — original illustration 1, reference 3016Original colors & callouts · Select to enlarge

Step 3

1. Disconnect the rear wheel speed sensor from electrical connector.

2. Detach the 2 sensor harness retainers.

3. Remove the bolt and the rear wheel speed sensor. Torque : 80 lb.in (9 Nm)

Source reference 3016
