Front Wheel Speed Sensor — 2016 workshop reference 3015

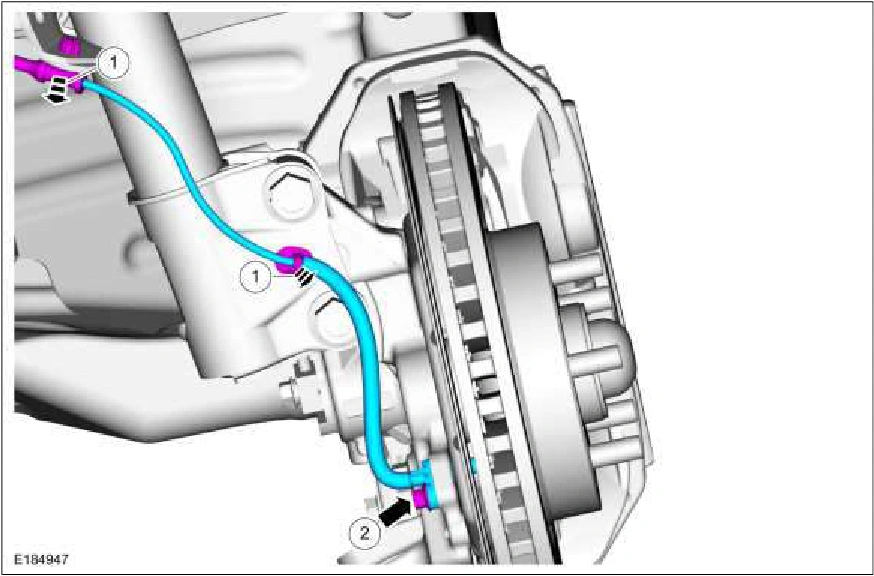

Front Wheel Speed Sensor — original illustration 1, reference 3015Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

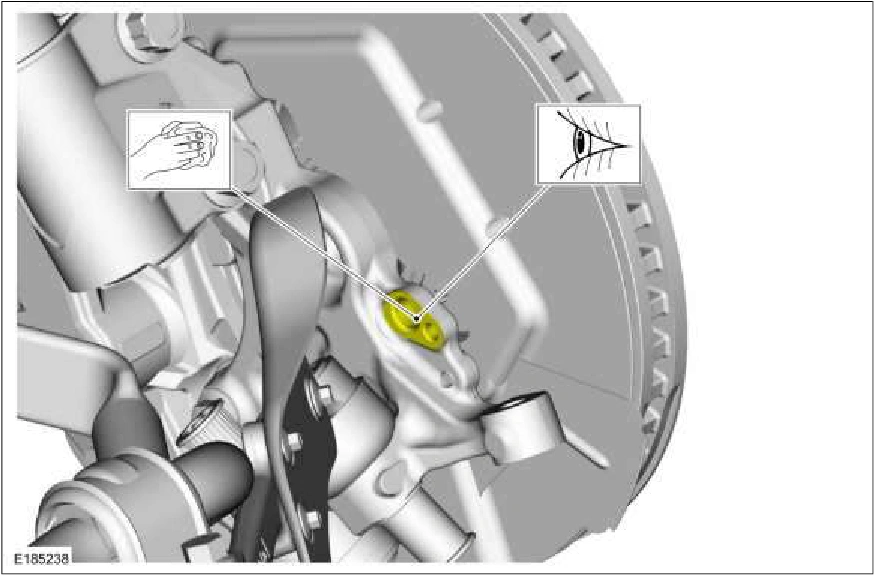

2. Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material.

Front Wheel Speed Sensor — original illustration 2, reference 3015Original colors & callouts · Select to enlarge
