206-09 Anti-Lock Brake System (ABS) and Stability Control 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Front Wheel Speed Sensor

Base Part Number: 2C204

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

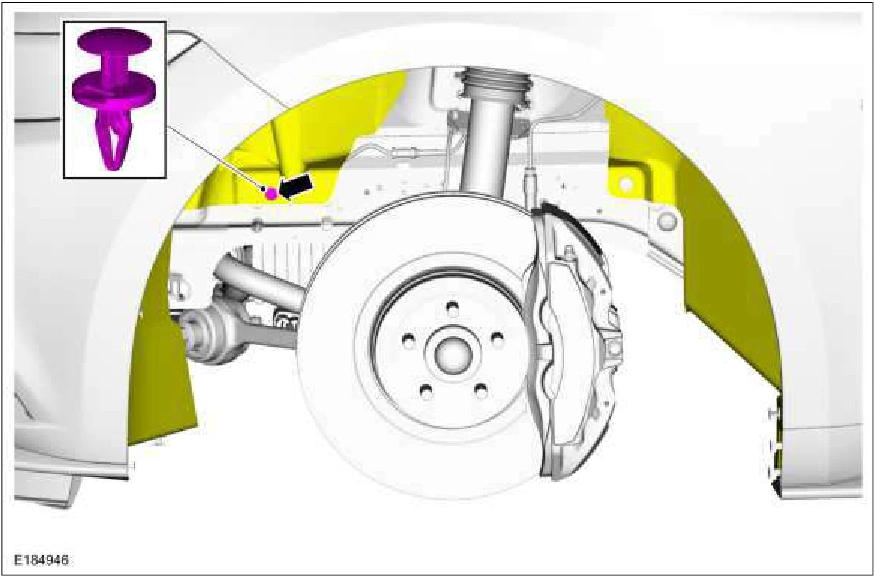

2. Remove the retainer and position aside the fender splash shield.

Front Wheel Speed Sensor — original illustration 1, reference 3013Original colors & callouts · Select to enlarge

3. Disconnect the front wheel speed sensor electrical connector and detach the 2 harness retainers.
