Transmission - 5.0L 32V Ti-VCT — 2016 workshop reference 3080

308-03A Manual Transmission - 6-Speed Manual Transmission - 2016 Mustang MT82

Procedure revision date:

Disassembly

04/30/2015

Transmission - 5.0L 32V Ti-VCT

Base Part Number: 7000

Special Tool(s) / General Equipment

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3080Original colors & callouts · Select to enlarge	205-153 (T80T-4000-W) Handle
308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3080Original colors & callouts · Select to enlarge	307-003 (T57L-500-B) Holding Fixture, Transmission
308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3080Original colors & callouts · Select to enlarge	308-130 (T87T-7025-DH) Installer, Shift Rail Needle Bearing TKIT-1987-FLMH
308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 4, reference 3080Original colors & callouts · Select to enlarge	308-375 Remover, Input Shaft Seal TKIT-1999-F/FLM/LT TKIT-2005U-M

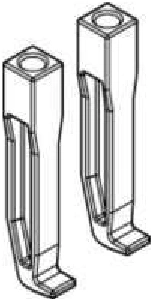

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 5, reference 3080Original colors & callouts · Select to enlarge	308-810 Remover, Syncro Gear Pack TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 6, reference 3080Original colors & callouts · Select to enlarge	308-812 Remover, Detent TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
