2016 workshop · Manual Transmission, Clutch and Transfer Case

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82

2016 MustangMT82Reference 3,083 / 6,619HTML edition
← Chapter contents
308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3083Original colors & callouts · Select to enlarge

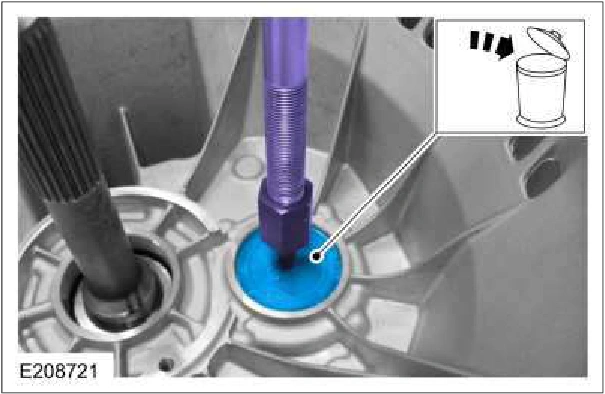

8. Using the special tool, remove and discard the countershaft bolt cover. Use the General Equipment: Slide Hammer Dent Puller

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3083Original colors & callouts · Select to enlarge

9. Install the special tools, position the shift shaft into 4th gear. Use Special Service Tool: 308-938 Remover/Installer, Companion Flange Nut.
