308-938 Remover/Installer, Companion Flange Nut TKIT-2014D-FL_ROW TKIT-2014D-ROW2 | |
Slide Hammer Dent Puller | |
Slide Hammer | |
Three Leg Puller | |
Hydraulic Press | |
Center Punch | |
Two Leg Puller | |
WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.
1.
Click here to view a video version of this procedure.
2. Clean the transmission exterior with solvent and dry with compressed air. During disassembly, clean all components with solvent and dry with compressed air.

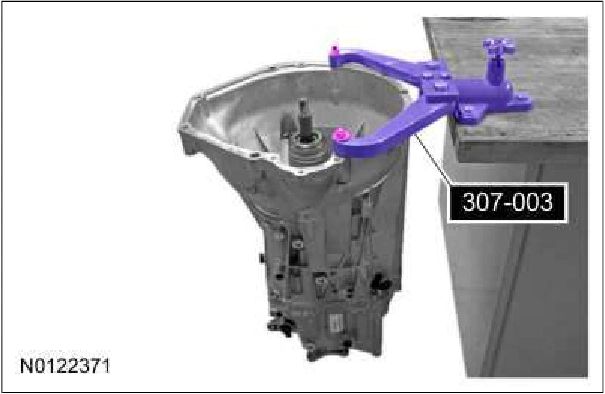

3. Attach the transmission to the special tool. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.
Step 4
1. Remove the slave cylinder bolts.
2. Pull the clutch slave cylinder outward and release the tube from the retaining clip and if equipped, remove the clutch slave cylinder spacer.
