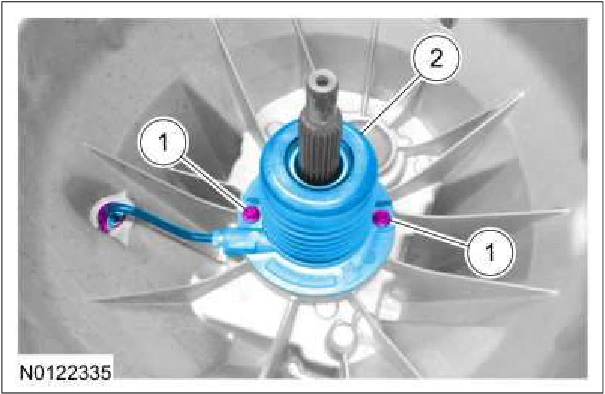

5. Inspect the clutch slave cylinder for the following: Damaged boot Leaking brake fluid Worn or damaged release bearing Rotate the release bearing while applying pressure. If the bearing rotation is rough, install a new clutch slave cylinder.

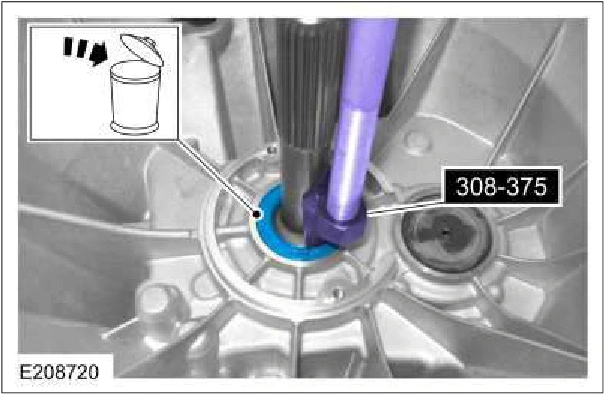

6. Using the special tools, remove and discard the input shaft seal. Use Special Service Tool: 308-375 Remover, Input Shaft Seal. Use the General Equipment: Slide Hammer
7. Using a center punch, mark a location in the center of the countershaft bolt cover. Using a drill bit of the appropriate size for the dent puller, drill a hole in the center of the countershaft bolt cover. Drill the hole to pierce the countershaft bolt cover approximately 2 mm (0.078 in) in depth. Use the General Equipment: Center Punch
