308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3086Original colors & callouts · Select to enlarge

14. Remove the bolt and the OSS sensor.

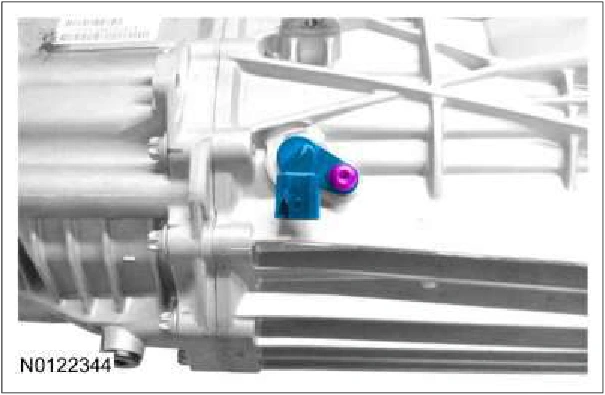

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3086Original colors & callouts · Select to enlarge

Step 15

1. Detach the electrical connector retainer.

2. Remove the reverse lamp switch.

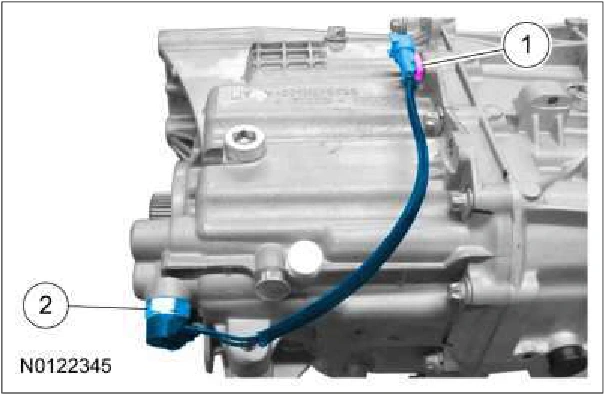

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3086Original colors & callouts · Select to enlarge

16. Remove the LH and RH reverse gear shift fork pivot bolts.

Source reference 3086
