308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3087

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3087Original colors & callouts · Select to enlarge

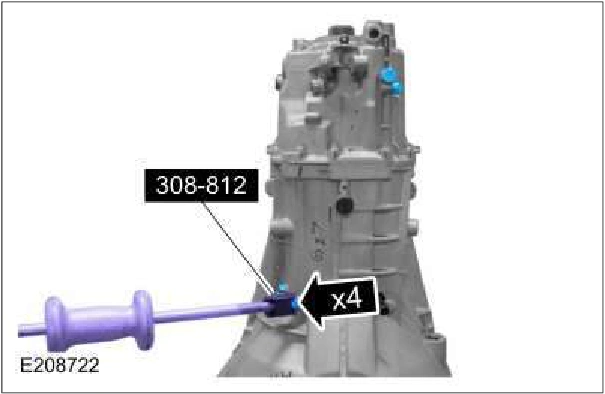

17. Using the special tools, remove the shift rail detents. Use Special Service Tool: 308-812 Remover, Detent. Use the General Equipment: Slide Hammer

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3087Original colors & callouts · Select to enlarge

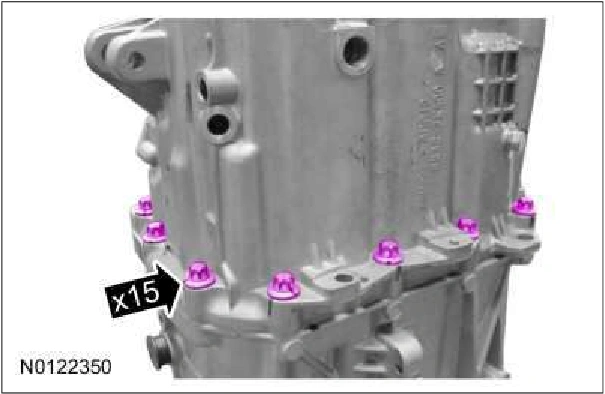

18. Remove the transmission case bolts.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3087Original colors & callouts · Select to enlarge

19. Using the two leg puller and the step plate, remove the rear transmission case. Use the General Equipment: Two Leg Puller
